4. Configure two Firewall to connect the Internet and the CS-2001 and then configure a router to
connect the CS-2001 and DMZ (192.168.2.1/24 and 192.168.3.1/24). Connect the two subnets
to WAN1's firewall and WAN2's firewall individually. Then, the packets from the two subnets
(Figure 3-25)
will be sent to WAN1 or WAN2 according to the default gateway settings.

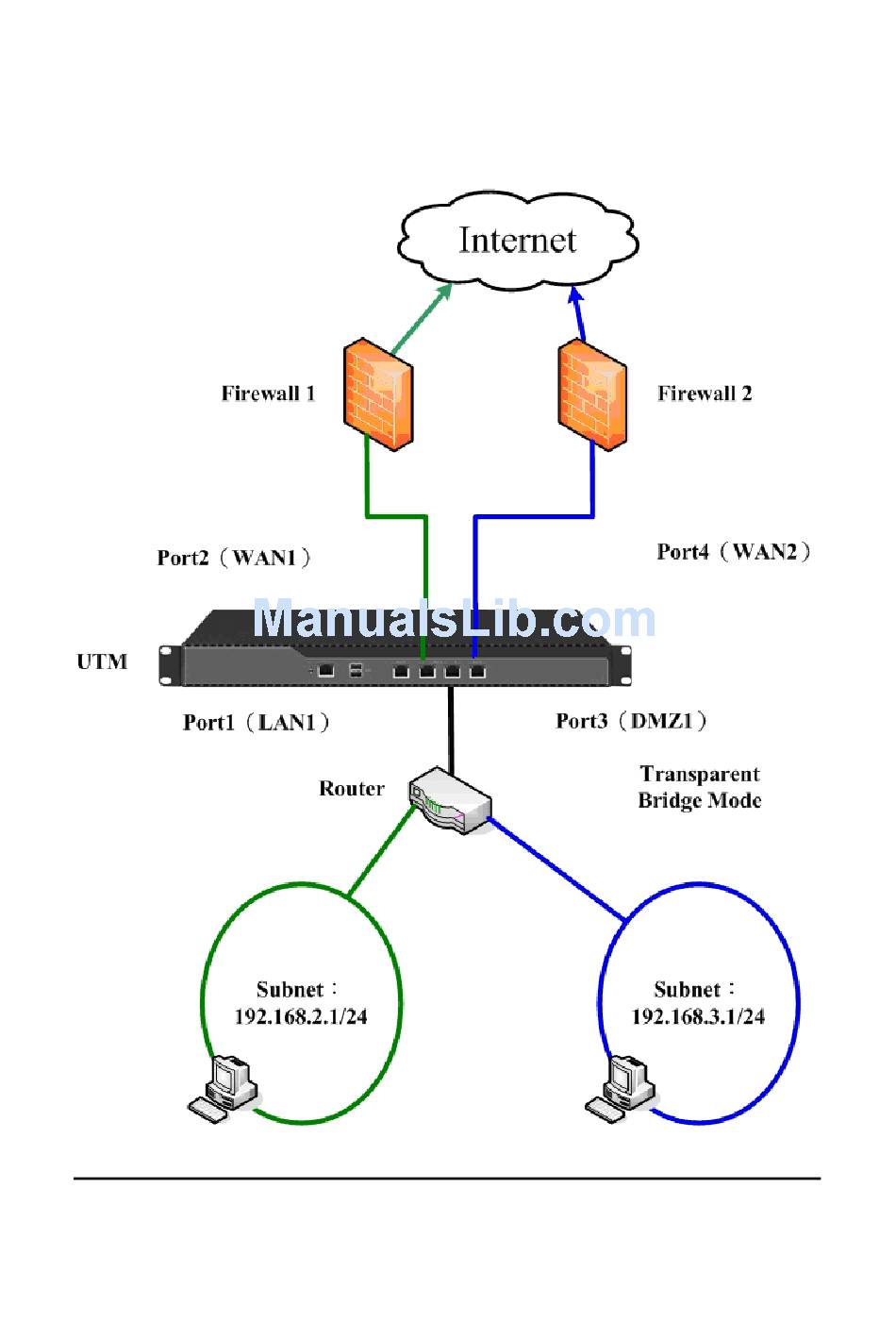

Figure 3-25 The Deployment of DMZ Using Transparent Bridging Mode 04
117
