2: Removing and Replacing System Components
78
3. Follow these steps to install the plastic plenum:
Align the narrow part of the plastic plenum with the air vent on the power
supply socket module, using the adhesive sides of the plenum to stick it into
position, as shown in Figure 2-46.
Align the wide part of the plenum with the power supply fan opening.
Plenum

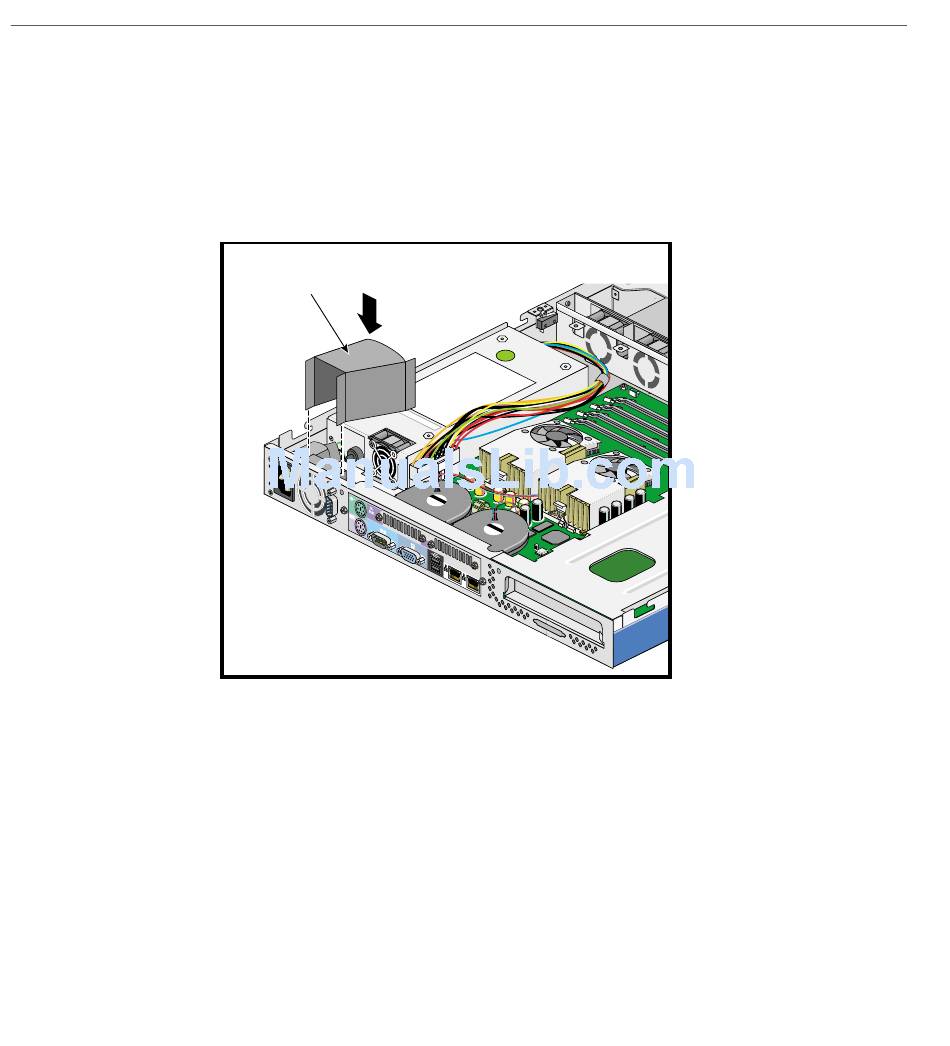

Figure 2-46
Installing the Plastic Plenum
4. Tighten three screws to secure the power supply module to the chassis as shown in
Figure 2-45.
007-4047-001
