2: Removing and Replacing System Components

Replacing Chassis Fans

36
To remove a chassis fan, gently pull up the chassis fan from the fan cage, as shown in
Figure 2-12.

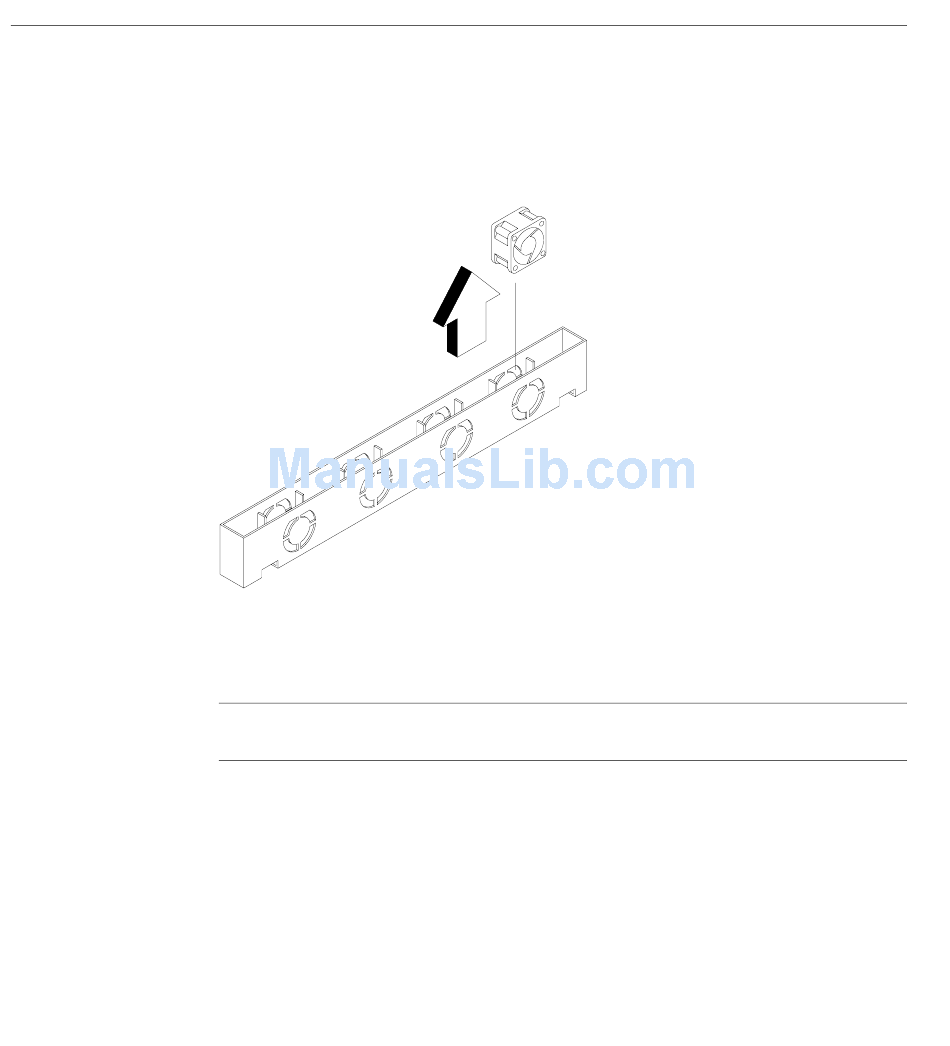

Figure 2-12 Removing the Chassis Fan
To install a chassis fan, insert the chassis fan into the chassis fan cage.
Note: Ensure that the fan you are installing is properly oriented so as to blow air toward
the rear of the chassis.
007-4047-001
