007-4047-001
Follow these steps to install the diskette drive:
1.
Slide the diskette drive into the drive module as shown in Figure 2-31.
2. Tighten four screws, two on each side of the disk drive module, as shown in
Figure 2-31.

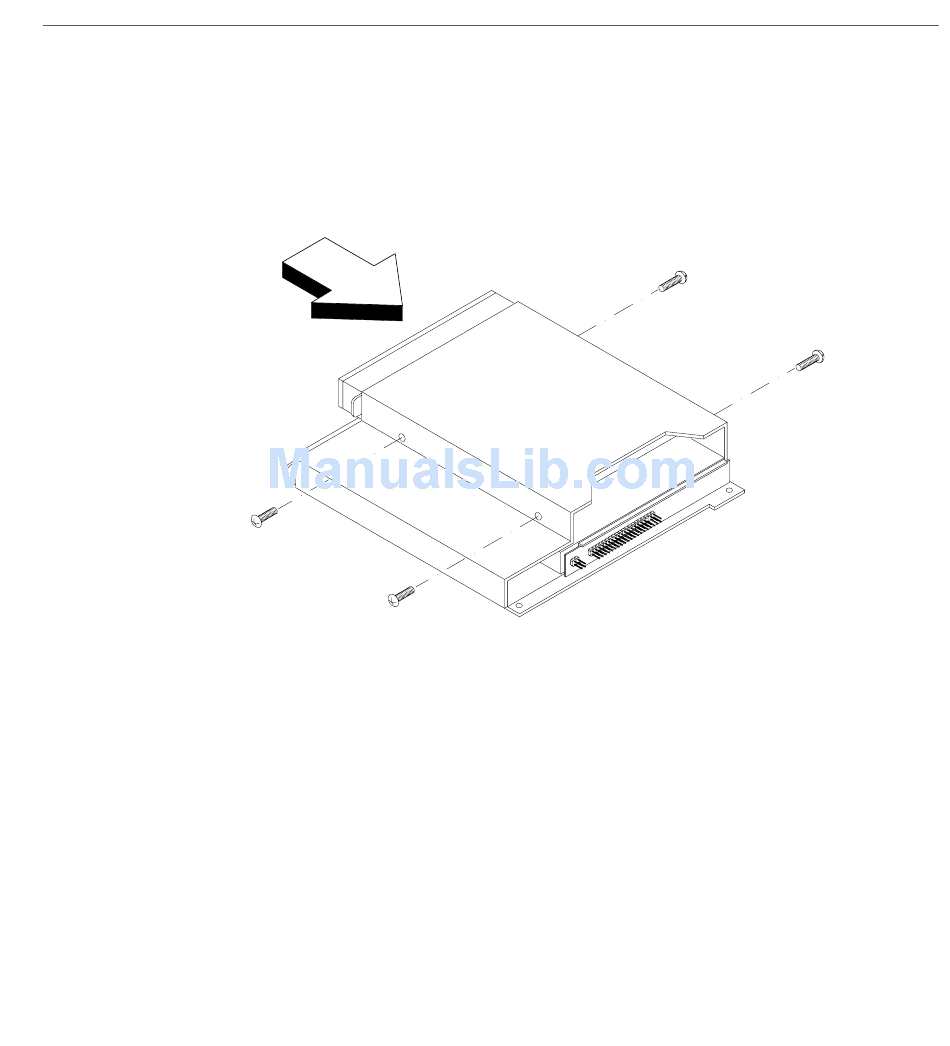

Figure 2-31
Installing the Diskette Drive into the Drive Module
3. Install the diskette drive module as described in "Installing the Diskette
Drive/CD-ROM Drive Module" on page 54.
Replacing Removable-Media Devices
57
