Figure 2-56 Installing The System Board - Silicon Graphics SGI 1100 Maintenance And Upgrade Manual

2: Removing and Replacing System Components
94
Follow these steps to install the system board:
1. Place the system board into the chassis so as to align the I/O ports with their
corresponding holes on the rear panel.
2. Tighten 12 screws on the system board, 2 jackscrews on serial port 1, and 2
jackscrews on the VGA port, as shown in Figure 2-56.

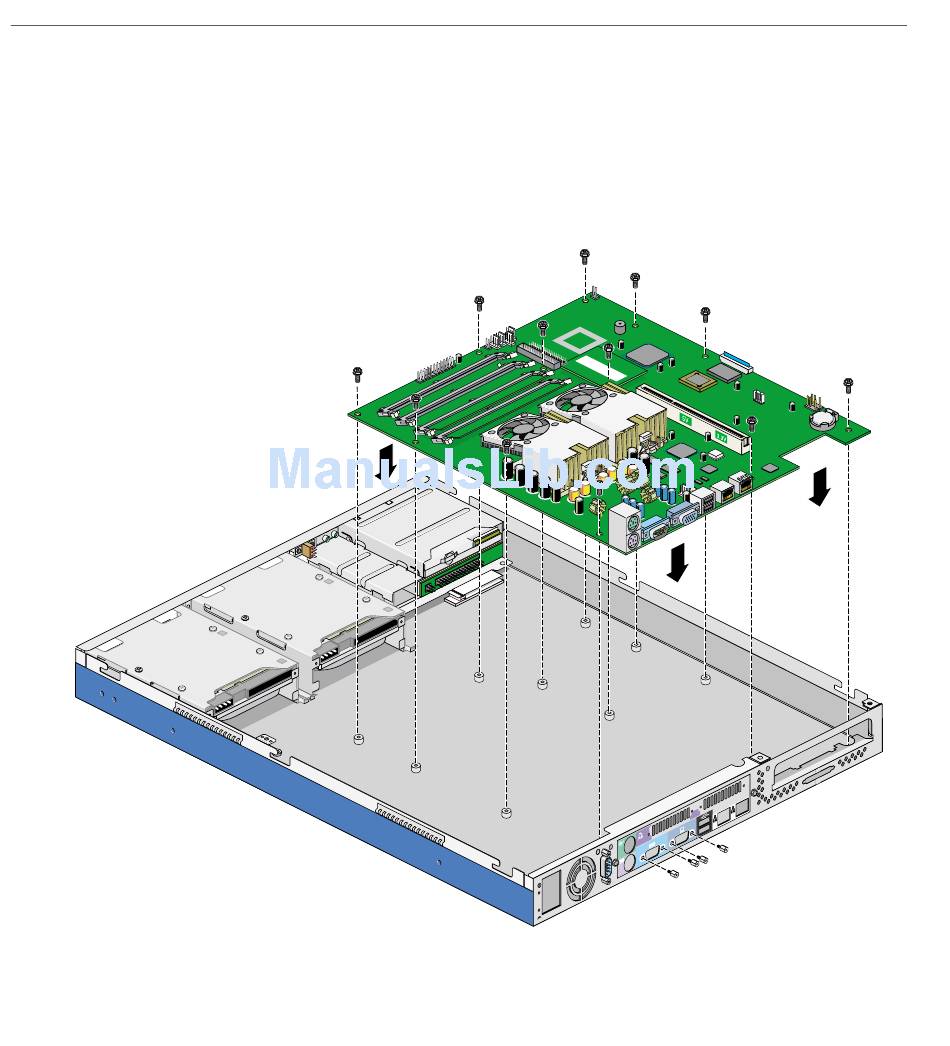

Figure 2-56 Installing the System Board
