Installing a Rear System Blower

007-4047-001

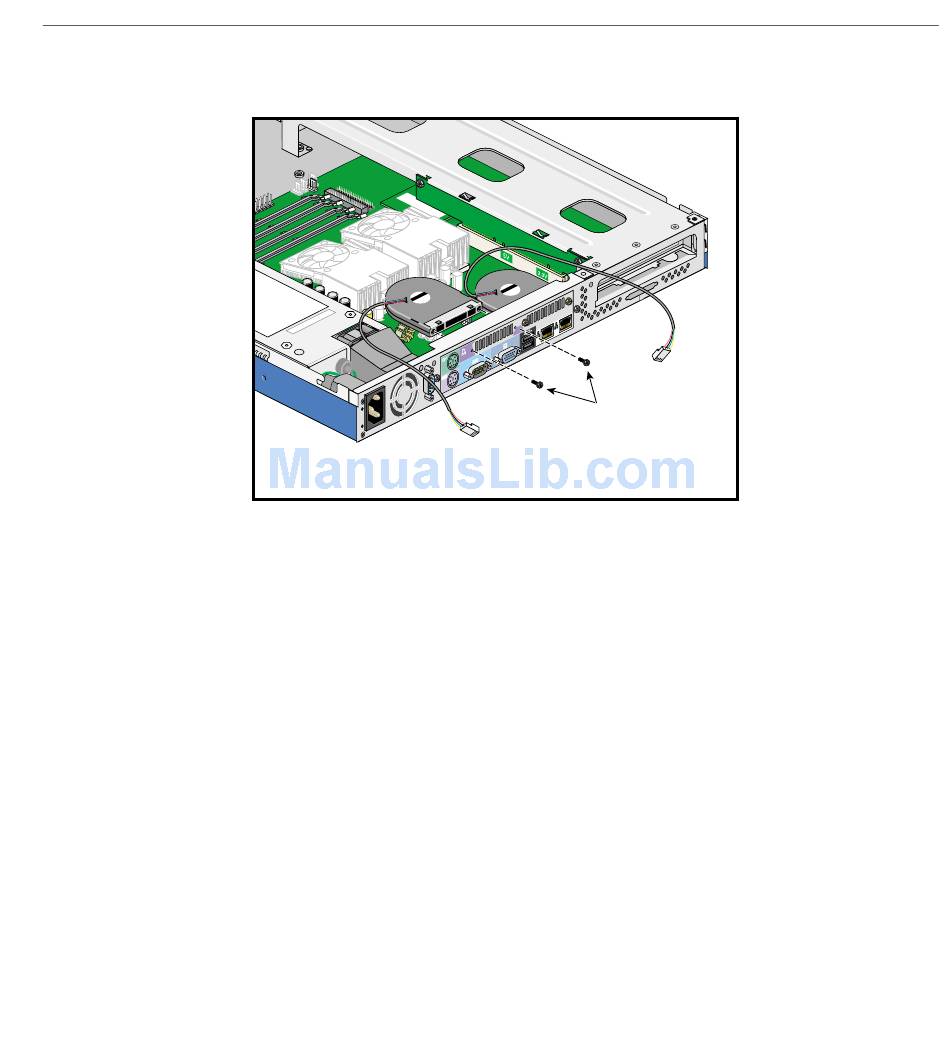

Rear System Blower Securing Screws
Figure 2-14
Follow theses steps to install each of the rear chassis blowers:
1.
Place the blower on its opening on the rear panel as shown in Figure 2-14
2. Connect the rear chassis blower cable to its connector on the system board. The left
blower (the one closest to the power supply) plugs into connector CN13 (which is
underneath the right blower). The right blower plugs into connector CN23 (which is
near the front of the system board). See Figure 2-13 for the locations of the rear
chassis blower cable connectors.
3. Tighten two screws to secure the blower in place.
4. Install the chassis cover as described in "Installing the Chassis Cover" on page 23.
Replacing the Rear Chassis Blowers
Rear blower
securing screws
39
