Replacing The Diskette Drive; Figure 2-30 Removing The Diskette Drive From The Drive Module - Silicon Graphics SGI 1100 Maintenance And Upgrade Manual

2: Removing and Replacing System Components

Replacing the Diskette Drive

56
Follow these steps to remove the diskette drive:
1. Remove the diskette drive module as described in "Removing the Diskette
Drive/CD-ROM Drive Module" on page 51.
2. Remove four screws, two on each side of the disk drive module, as shown in
Figure 2-30.
3. Gently pull the drive out of the drive module as shown in Figure 2-30.

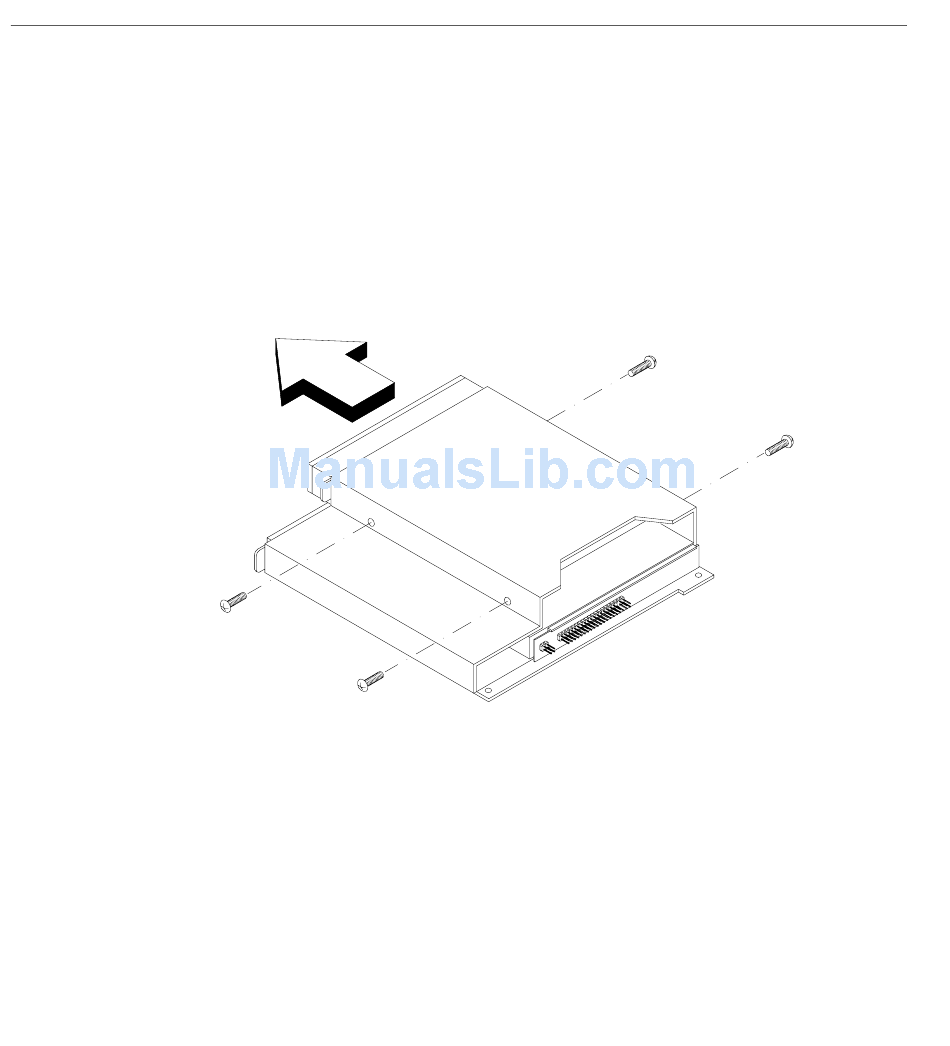

Removing the Diskette Drive from the Drive Module
Figure 2-30
007-4047-001
