Replacing the USB Daughterboard Cable Module

USB daughterboard
007-4047-001
Follow these steps to remove the USB daughterboard cable module:
1. Remove the chassis cover as described in "Removing the Chassis Cover" on
page 21.
2. Disconnect the USB daughterboard cable connector from the system board. See
Figure 2-20 for the location of the USB daughterboard cable connector.

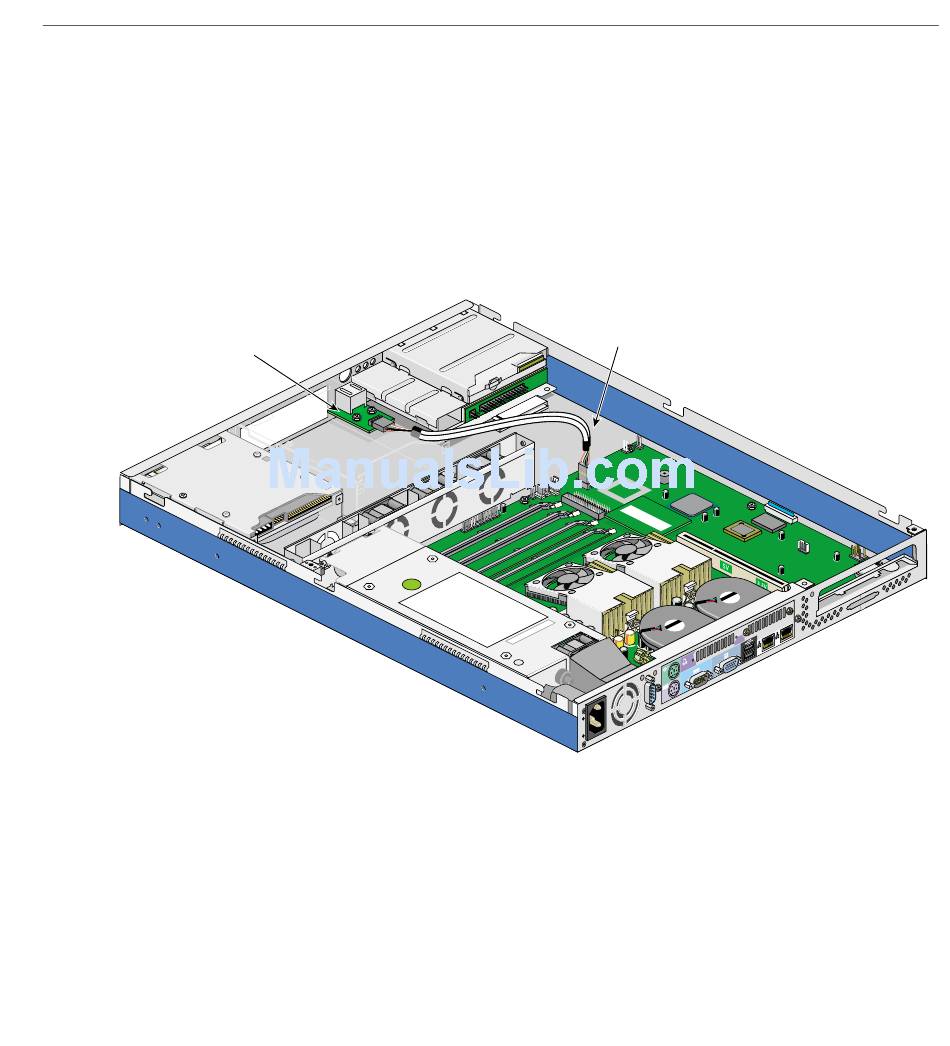

Figure 2-20 Location of the USB Daughterboard Cable Connector
Replacing the Cable Modules
USB daughterboard
cable connector
45
