2: Removing and Replacing System Components
44
Follow these steps to install the power switch cable module:
1.
Set the power switch cable module in place and secure it with two screws as shown
in Figure 2-19.

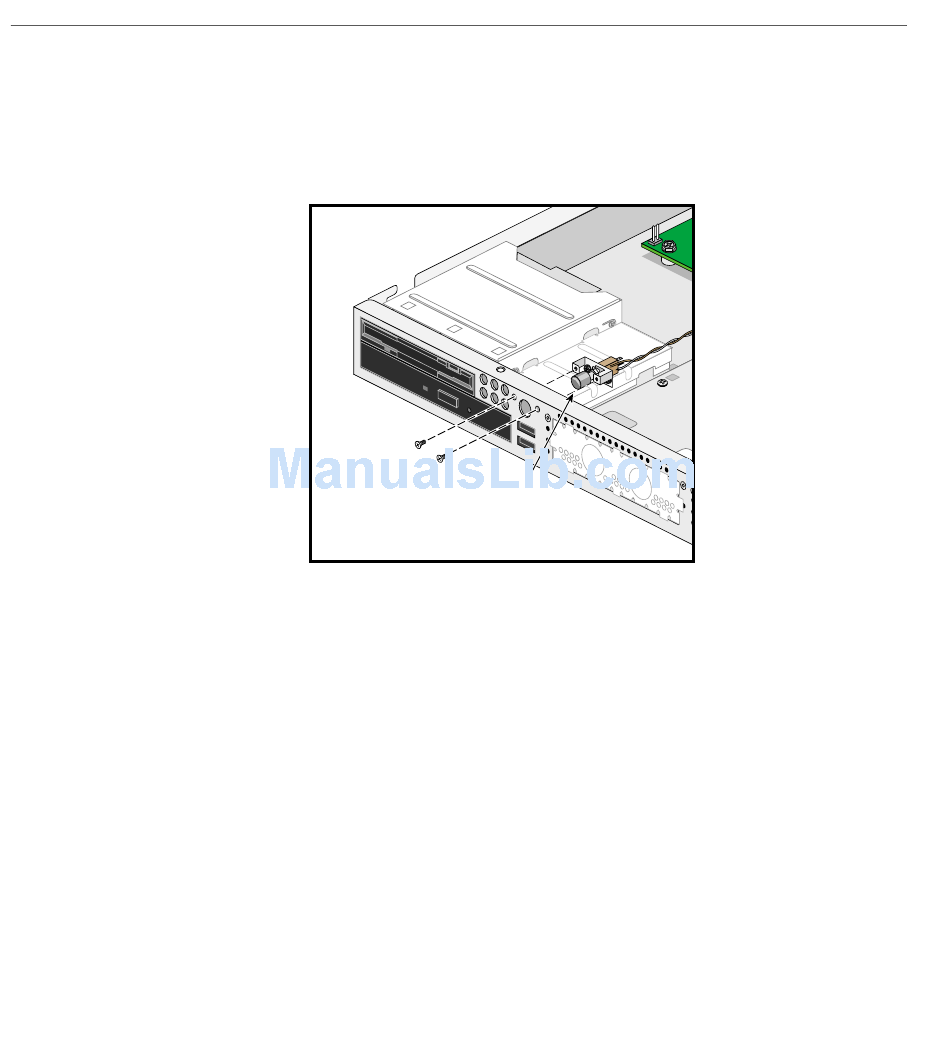

Figure 2-19
Installing the Power Switch Cable Module
2. Connect the power switch cable connector to the system board connector CN15,
pins 1 and 2. See Figure 2-17 for the location of the power switch cable connector.
3. Install the chassis cover as described in "Installing the Chassis Cover" on page 23.
Power switch
module
007-4047-001
