C: Port Pinouts

PS/2 Keyboard Port

136
The SGI 1100 server uses a standard PS/2 keyboard port.

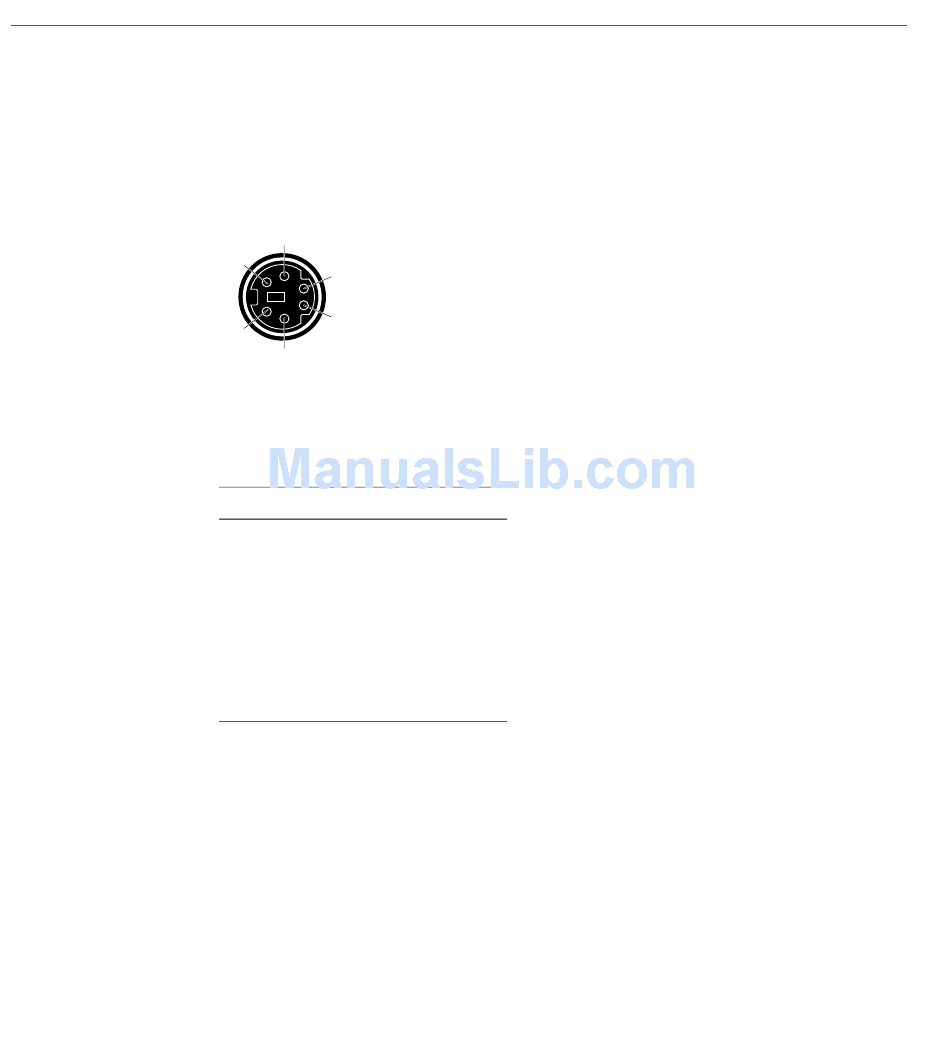

Figure C-1 shows the PS/2 keyboard port.
3
5
1
2
6
4
Figure C-1 Keyboard Port Pinout
Table C-1 shows the cable pinout assignments for the keyboard port.
Table C-1 Keyboard Port Pinout
Pin Assignment
1 Keyboard Data
2 (Reserved)
3 Ground
4 Keyboard Power (+5V)
5 Keyboard Clock
6 (Reserved)
