2: Removing and Replacing System Components

Removing the Riser Card

28
Follow these steps to remove the riser card from the link bar:
1. Remove the link bar as described in "Removing the Link Bar" on page 25.
2. Remove three screws as shown in Figure 2-6.

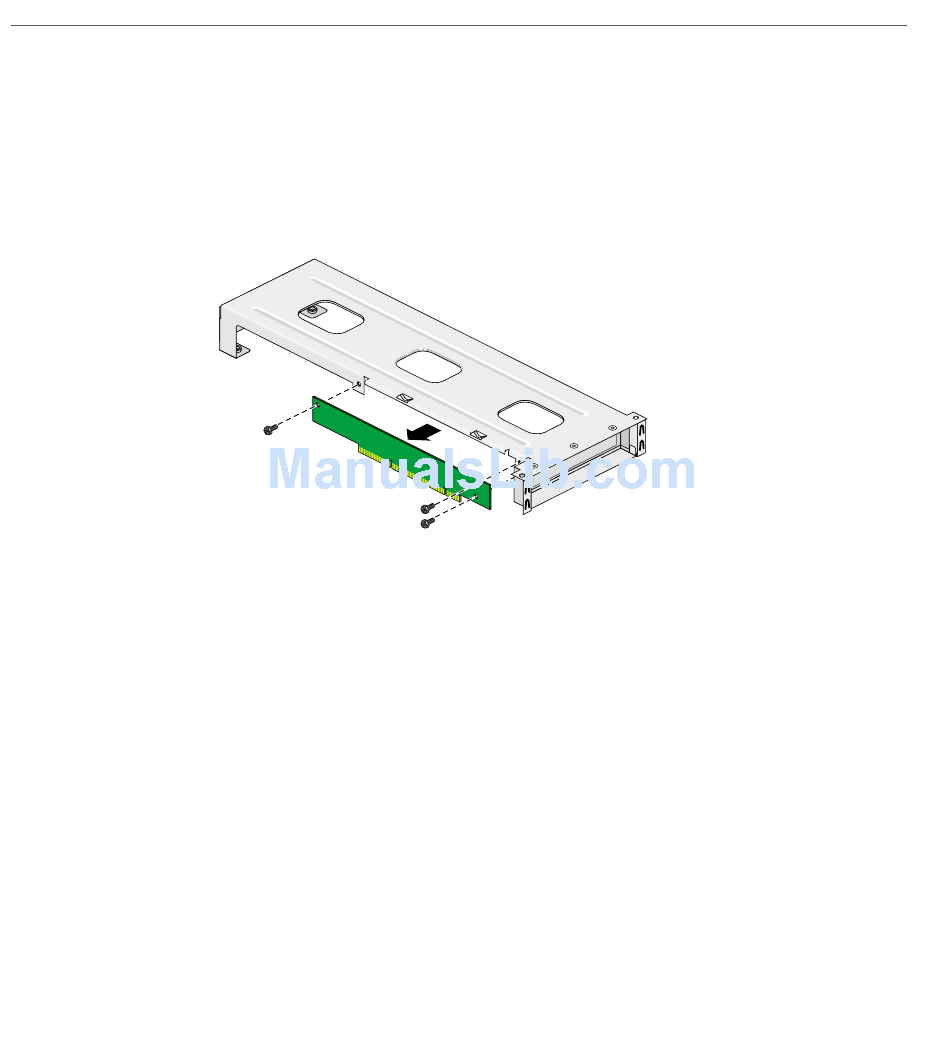

Figure 2-6 Detaching the Riser Card from the Link Bar
3. Separate the riser card from the link bar.
007-4047-001
