C: Port Pinouts

USB Ports

140
The SGI 1100 server has two 4-pin USB ports.

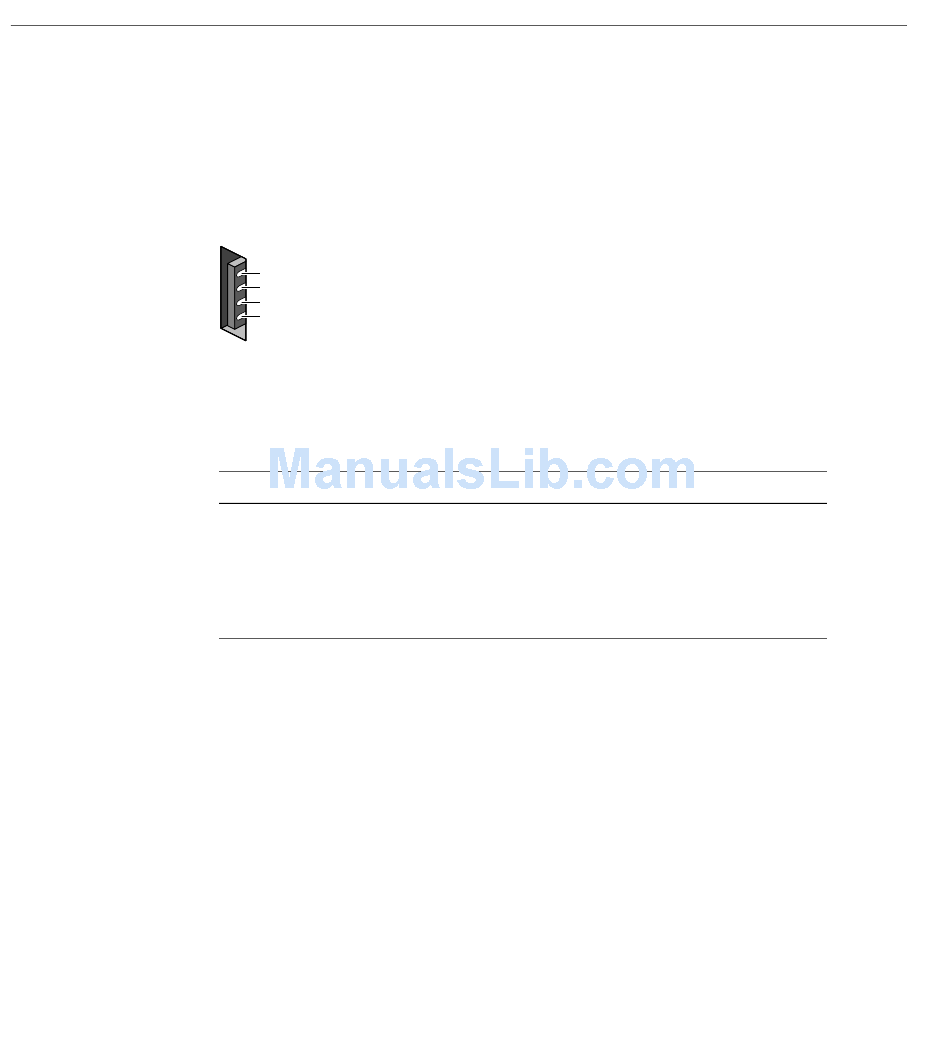

Figure C-5 shows the USB port.
1
2
3
4
Figure C-5 USB Port Pinout
Table C-5 shows the cable pinout assignments for the USB ports.
Table C-5 USB Port Pinout
Pin Assignment
1 VCC
2 -Data
3 +Data
4 Ground
Color Comment
Red Cable power
White
Green
Black Cable ground
