Installing the Chassis Cover

007-4047-001
Follow these steps to install the chassis cover:
1. Place the system unit on a flat, steady surface.
2. Place the chassis cover on the chassis, so as to insert each of the six retaining pins
into their slots as shown in Figure 2-2.

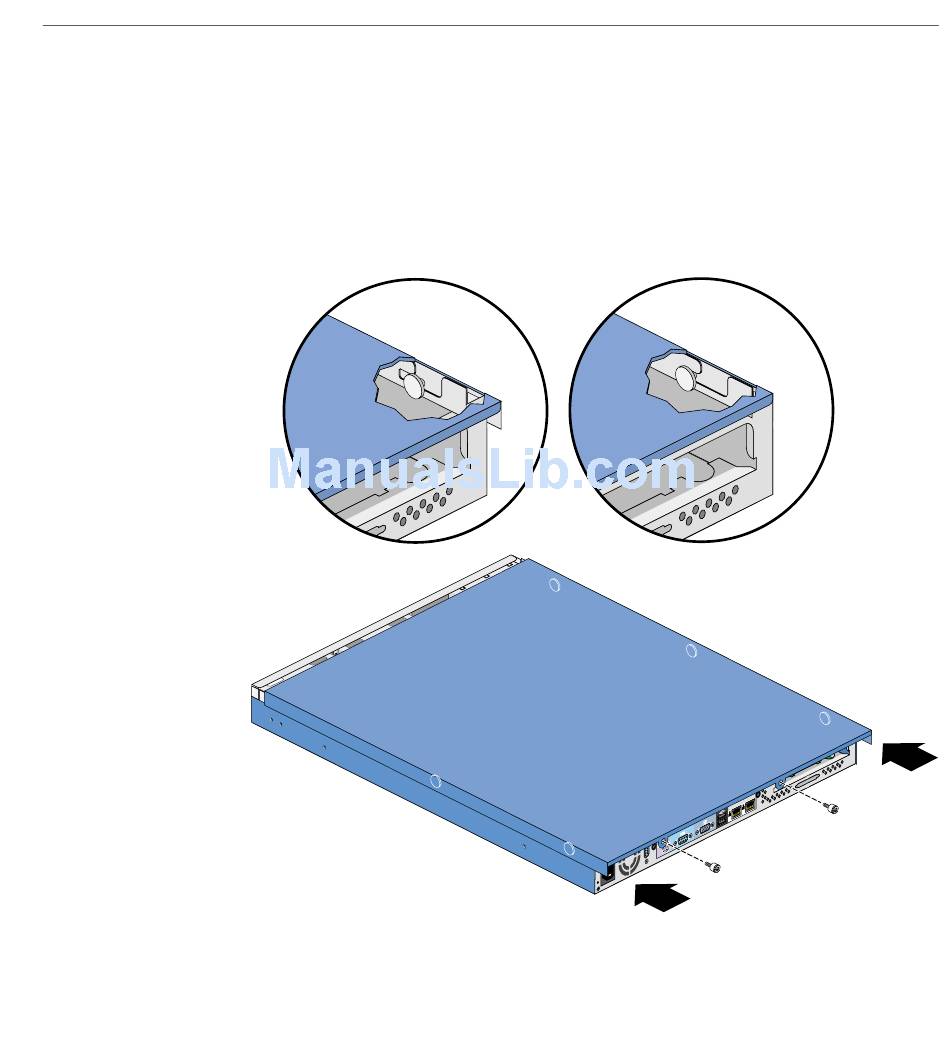

Figure 2-2 Placing the Chassis Cover on the Chassis
Opening the Chassis
23
