2: Removing and Replacing System Components
84
C
A
B

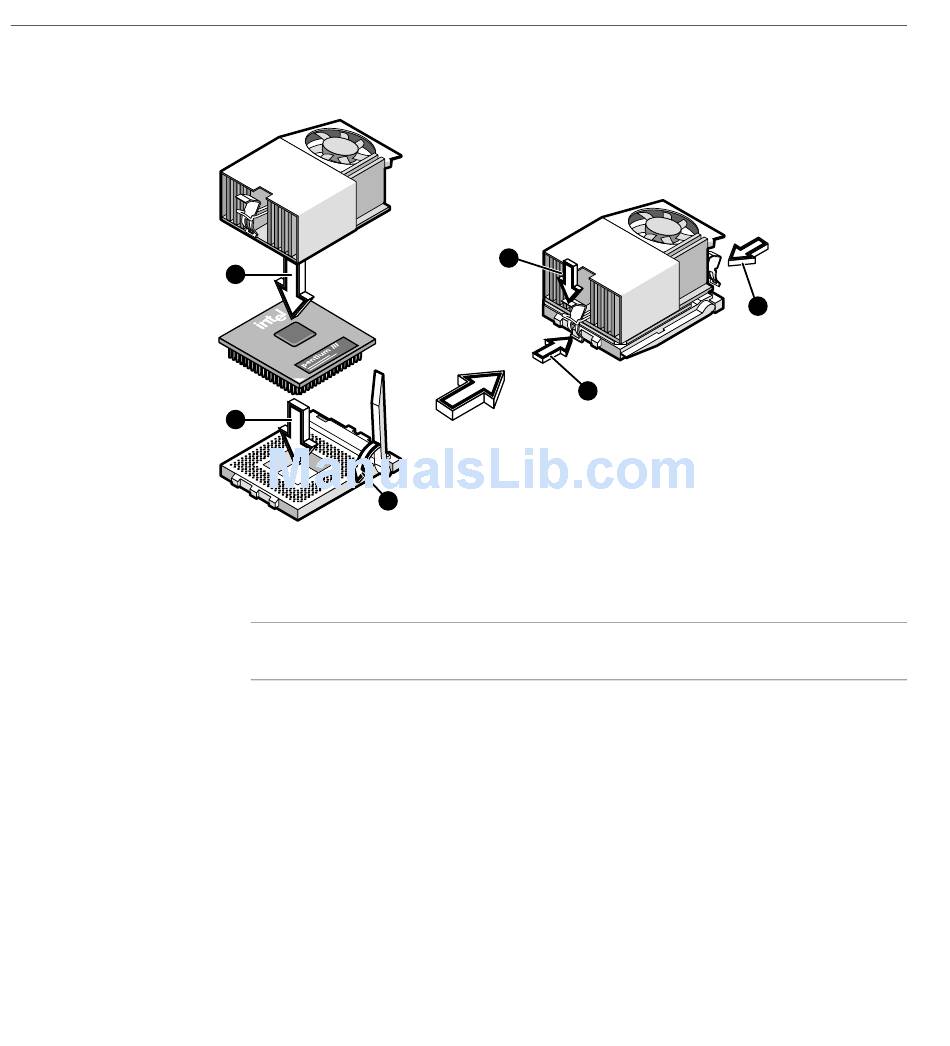

Figure 2-49 Installing the Processor
6. Follow these procedures to attach the heatsink/fan assembly to the processor:
Note: Avoid touching the thermal conductive grease on the bottom of the
fan/heatsink and the top of the processor.
– Spread a small amount of thermal conductive grease on the top center of the
processor.
– Tilt the heatsink/fan assembly on the processor so as to be able to hook the
metal bracket that is facing the front of the chassis over the retaining hook on
the CPU socket. See step D in Figure 2-49.
– Place the heatsink/fan assembly flat on the processor.
– Push the releasing tab to latch the other metal bracket over the retaining hook
on the CPU socket. See steps E and F in Figure 2-49.
E
F
D
007-4047-001
