C: Port Pinouts

VGA Port (DB15 HD)

138
The SGI 1100 server comes with a DB15 HD video port.

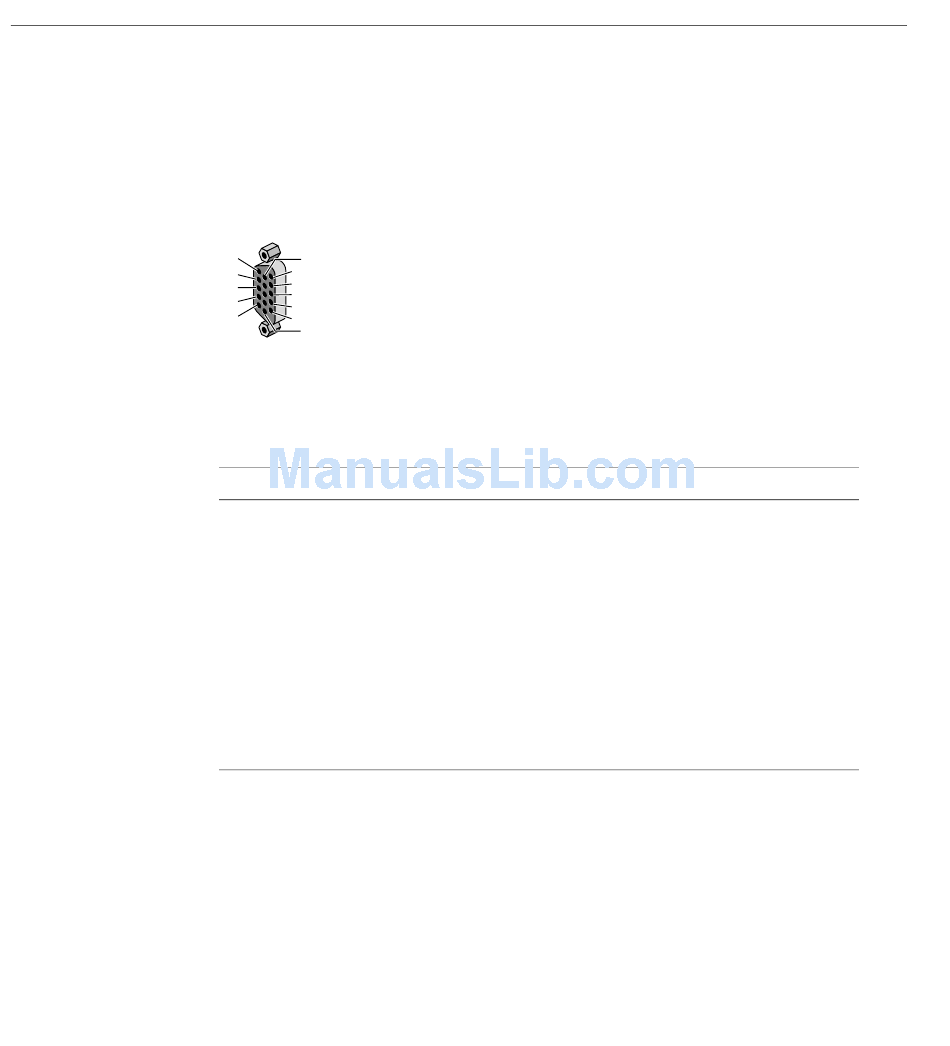

Figure C-3 shows the DB15 HD video port.
11
6
1
12
2
13
3
14
4
15
5
10
Figure C-3 DB15 HD Port Pinout
Table C-3 shows the cable pinout assignments for the DB15 HD video port.
Table C-3 DB15 HD Port Pinout
Pin Assignment
1 Red
2 Green
3 Blue
4 Ground
5 Ground
6 Red Return
7 Green Return
8 Blue Return
Pin Assignment
9 No Connect
10 Ground
11 Ground
12 IIC Data
13 Horizontal Sync
14 Vertical Sync
15 IIC Clock
