Installing the Riser Card

007-4047-001
Follow these steps to install the riser card onto the link bar:
1. Place the riser card on the link bar as shown in Figure 2-7.
2. Tighten three screws to secure the riser card to the link bar.

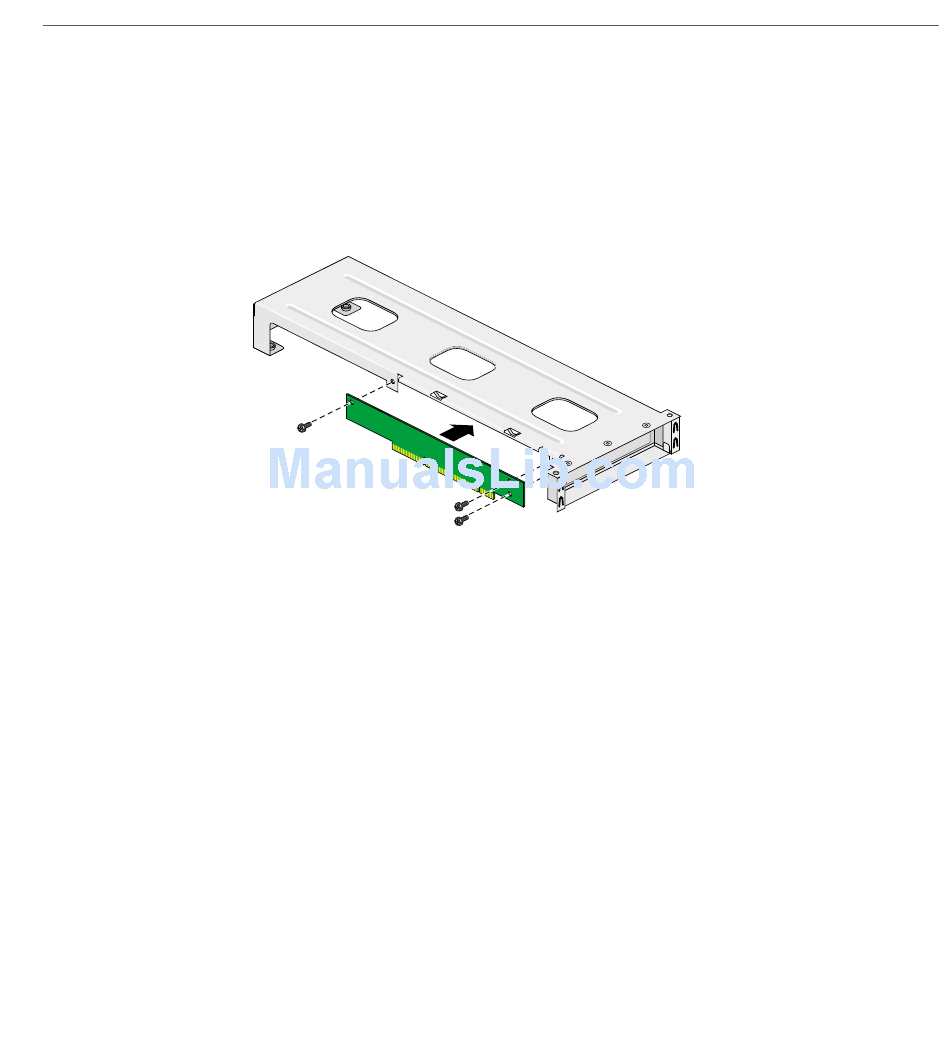

Figure 2-7 Installing the Riser Card on the Link Bar
Replacing the Link Bar and the Riser Card
