2: Removing and Replacing System Components

Installing an Expansion Board

30
Follow these steps to install an expansion board:
Note: The SGI 1100 server system supports only 3.3V or universal PCI cards. 5V PCI
cards are not supported.
1. Remove the chassis cover as described in "Removing the Chassis Cover" on
page 21.
2. Remove the link bar as described in "Removing the Link Bar" on page 25.
3. Remove the expansion slot filler plate as shown in Figure 2-8. Save the screw for
later use.

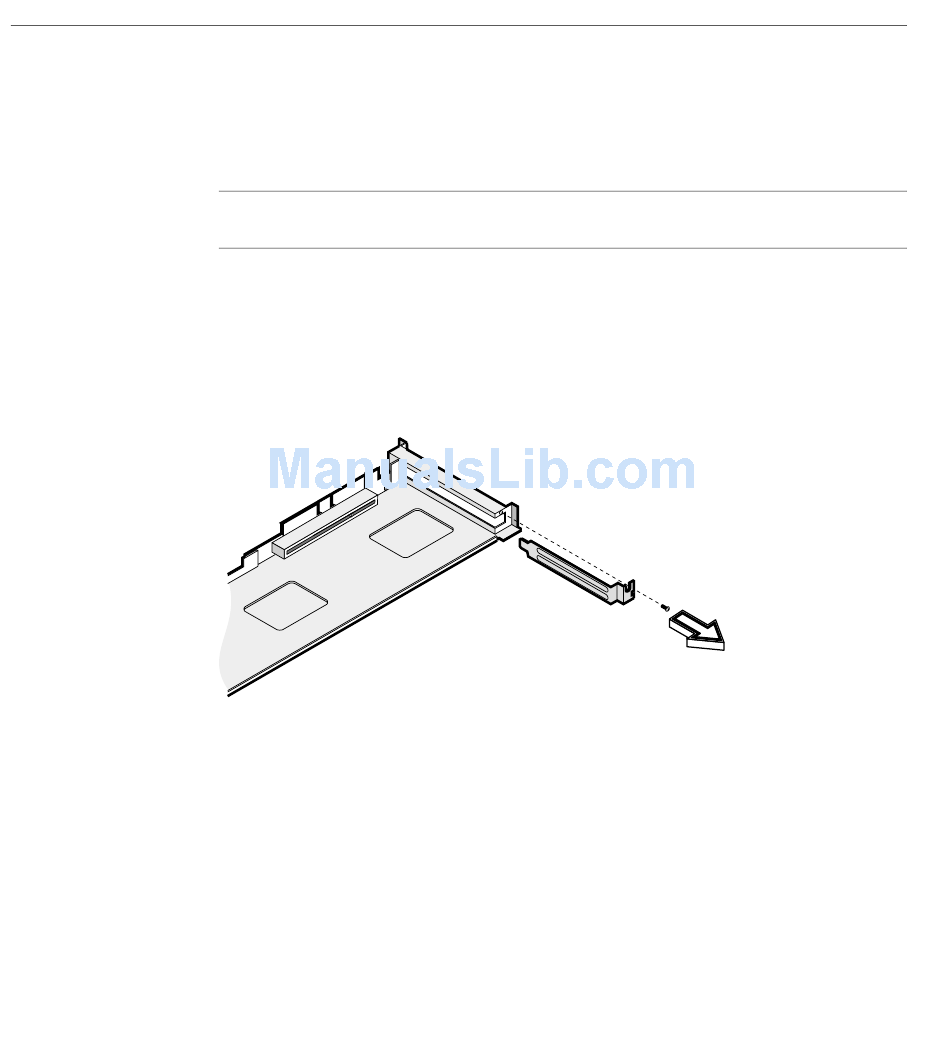

Figure 2-8 Removing the Expansion Slot Filler Plate
4. Insert the expansion card into the riser card PCI slot by pushing the expansion
board until it is properly seated. Then secure the expansion board to the metal
bracket with a screw, as shown in Figure 2-9.
