Serial Ports

007-4047-001
The SGI 1100 server has two PC-compatible serial ports. The serial port supports data
rates from 300 bits per second (bps) to 115.2 Kbps.
Figure C-4 shows the serial port.
1
6
2
7
3
8
4
9
5

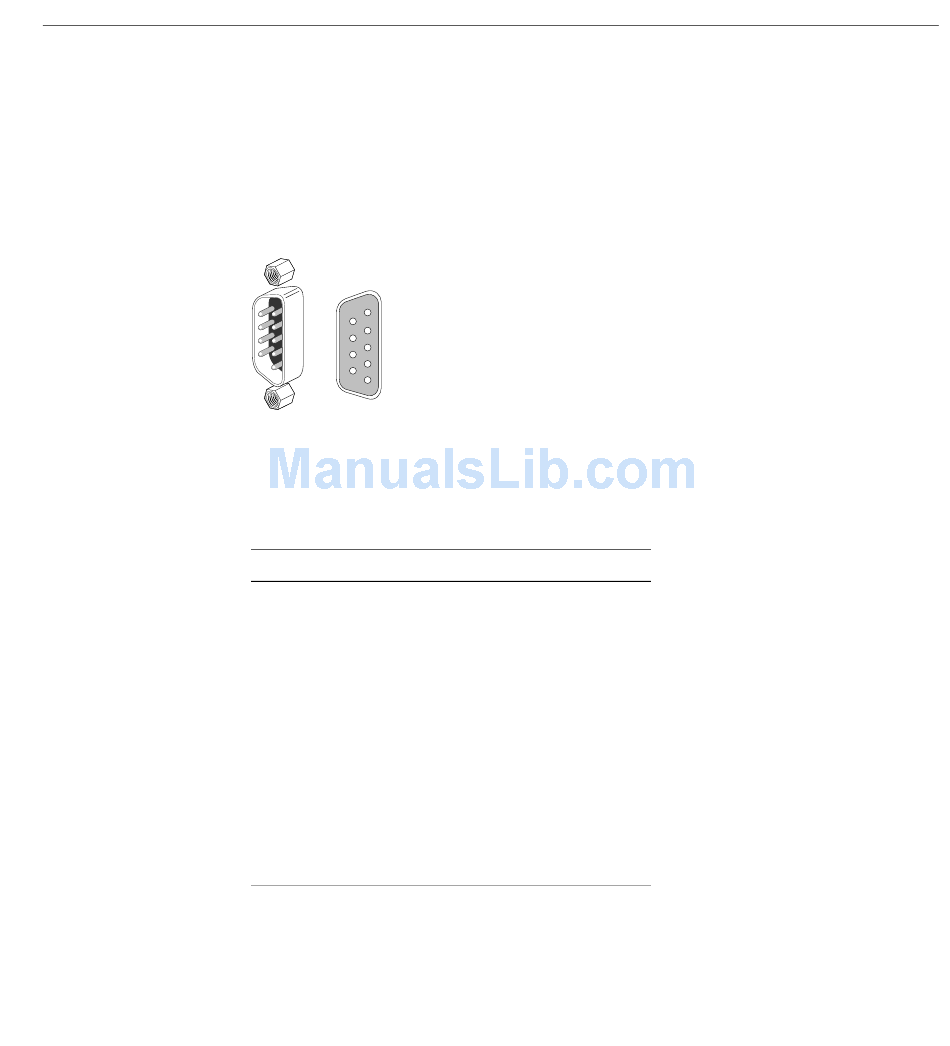

Figure C-4 Serial Port Pinout
Table C-4 shows cable pinout assignments for the serial ports.
Table C-4 Serial Port Pinout
Pin Assignment
1 DCD
2 RD
3 TD
4 DTR
5 SG
6 DSR
7 RTS
8 CTS
9 RI
Description
Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
