6. Remove two screws that hold the drive module to the chassis as shown in
Figure 2-28.
7. Gently slide the drive module back, and then lift it out of the chassis as shown in
Figure 2-28.

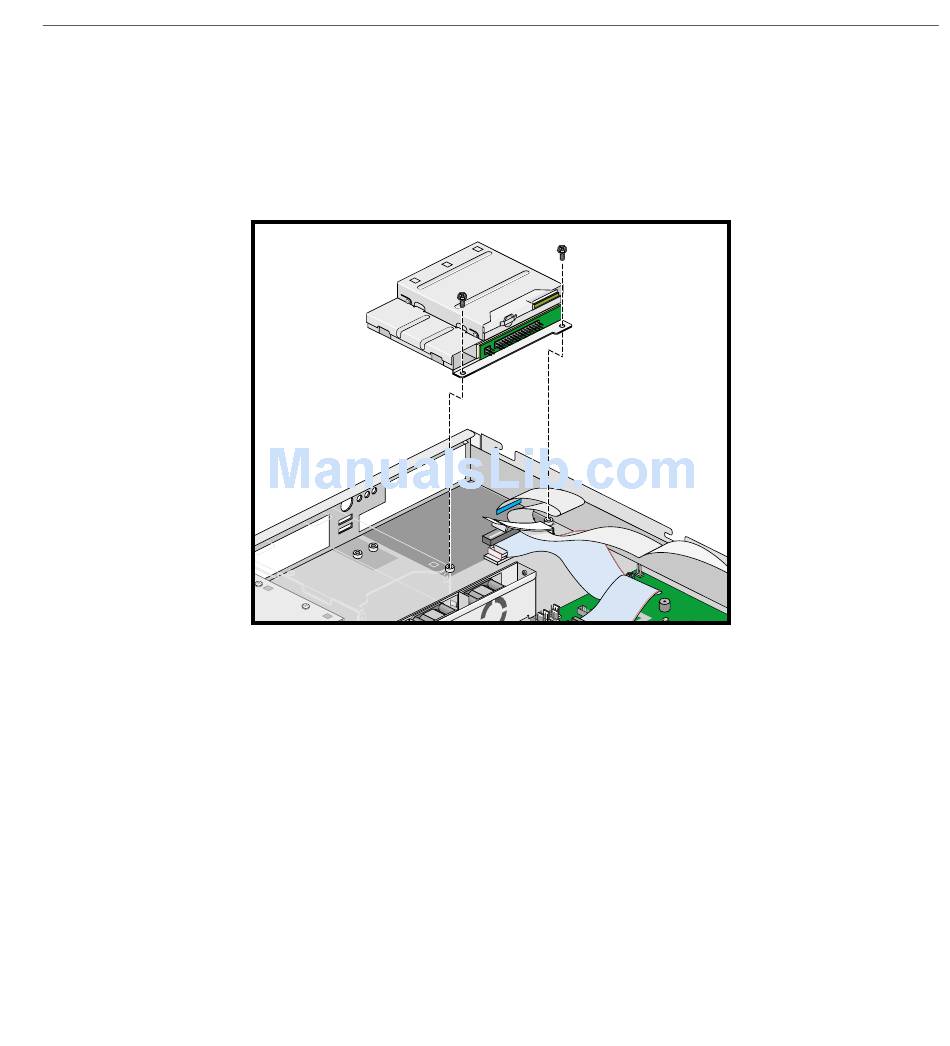

Figure 2-28
Removing the Drive Module
Replacing Removable-Media Devices
53
