2: Removing and Replacing System Components
52
Note: The CD-ROM drive signal cable is not a standard IDE cable. Instead, the
CD-ROM drive uses a signal cable with 50 conductors, some of which supply power.
5. Disconnect the diskette drive signal cable from the diskette drive connector. To do
so, lift the connector retaining latch and then pull the signal cable out of the
connector as shown in Figure 2-27.
Note: If you need to replace the diskette drive signal cable, follow the same
procedure to remove the diskette drive signal cable from the connector on the system
board.
Note: The diskette drive signal cable is not a standard floppy drive cable. Instead,
the diskette drive uses a signal cable with 26 conductors, some of which supply
power.

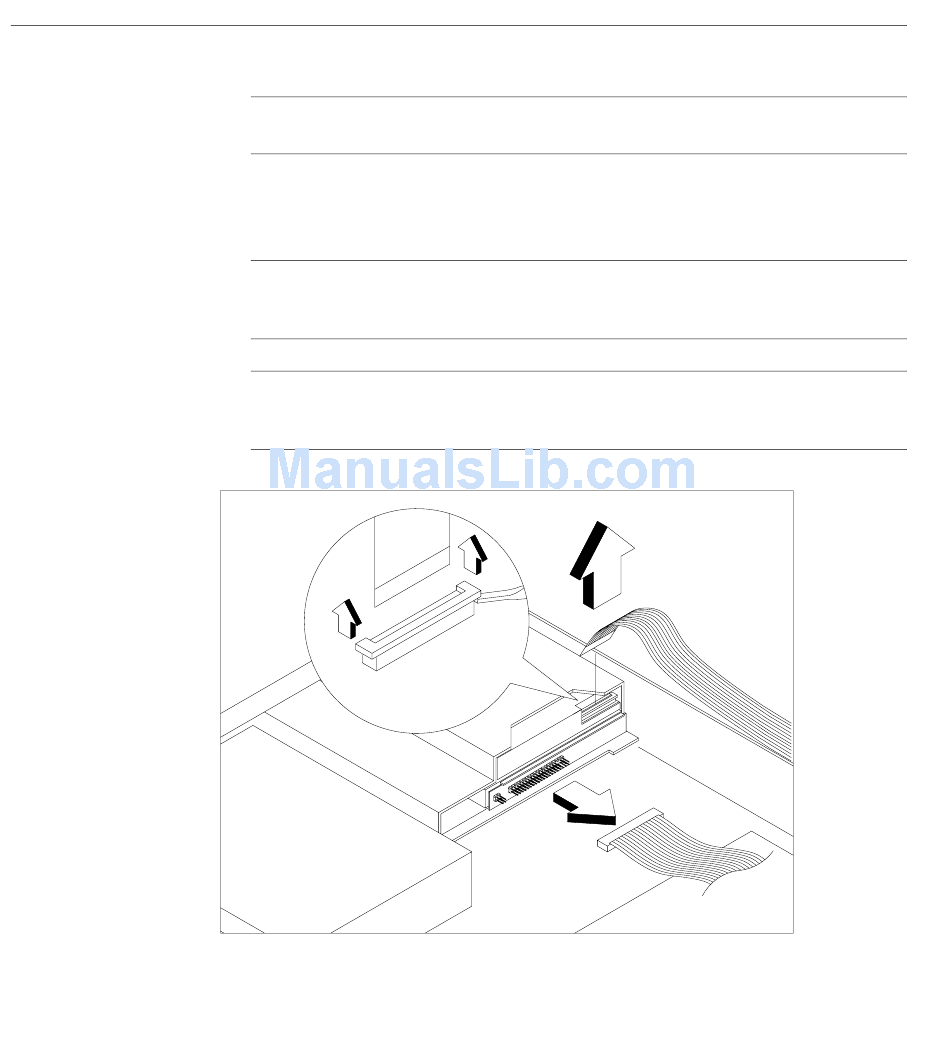

Figure 2-27 Disconnecting the Drive Module Signal Cables
007-4047-001
