Removing and Installing the Front Panel

24
3. Ensure that all six retaining pins are fully engaged into their slots, and then slide the
chassis cover toward the front of the system, as shown in Figure 2-2.
4. Tighten the two screw knobs to secure the chassis cover into place.
To remove the front panel, release the three screws and pull the front panel away from
the chassis as shown in Figure 2-3.
To install the front panel, tighten the 3 screws to secure the front panel to the chassis.

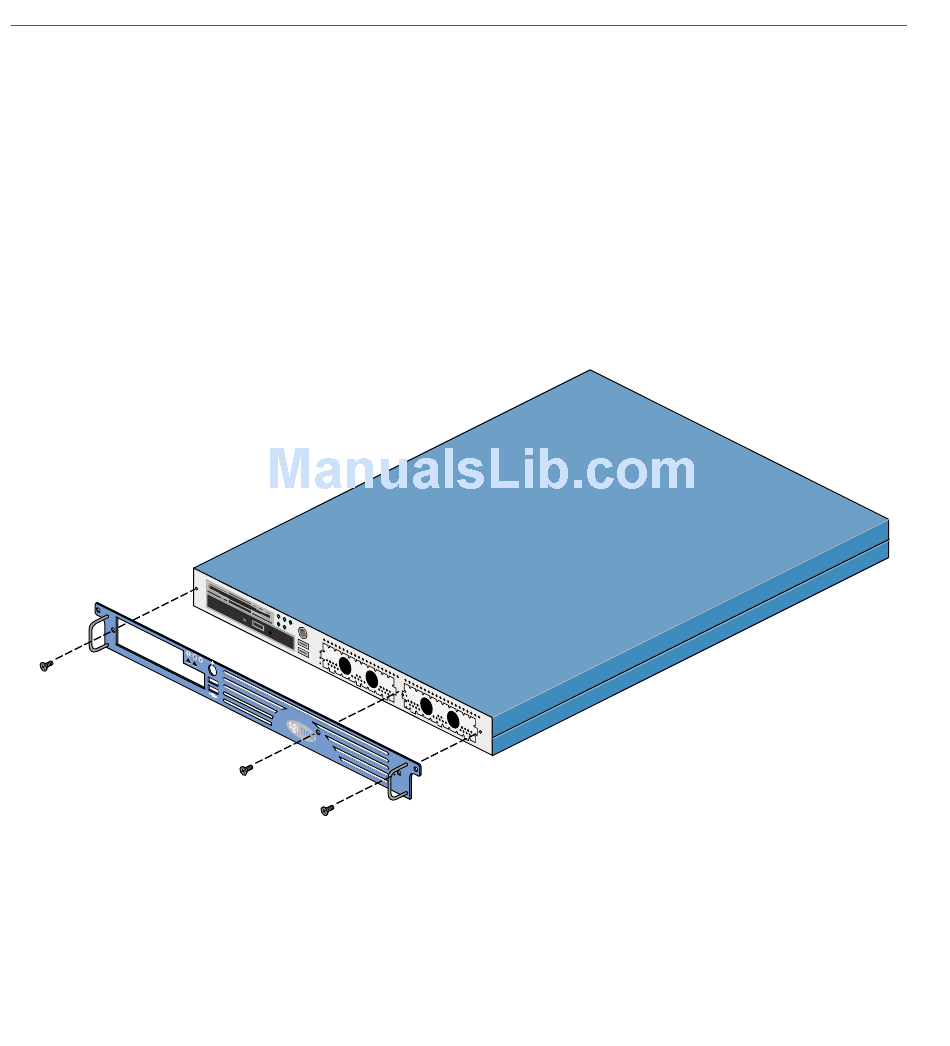

Figure 2-3 Removing the Front Panel
