Follow these steps to install the USB daughterboard cable module:
1.

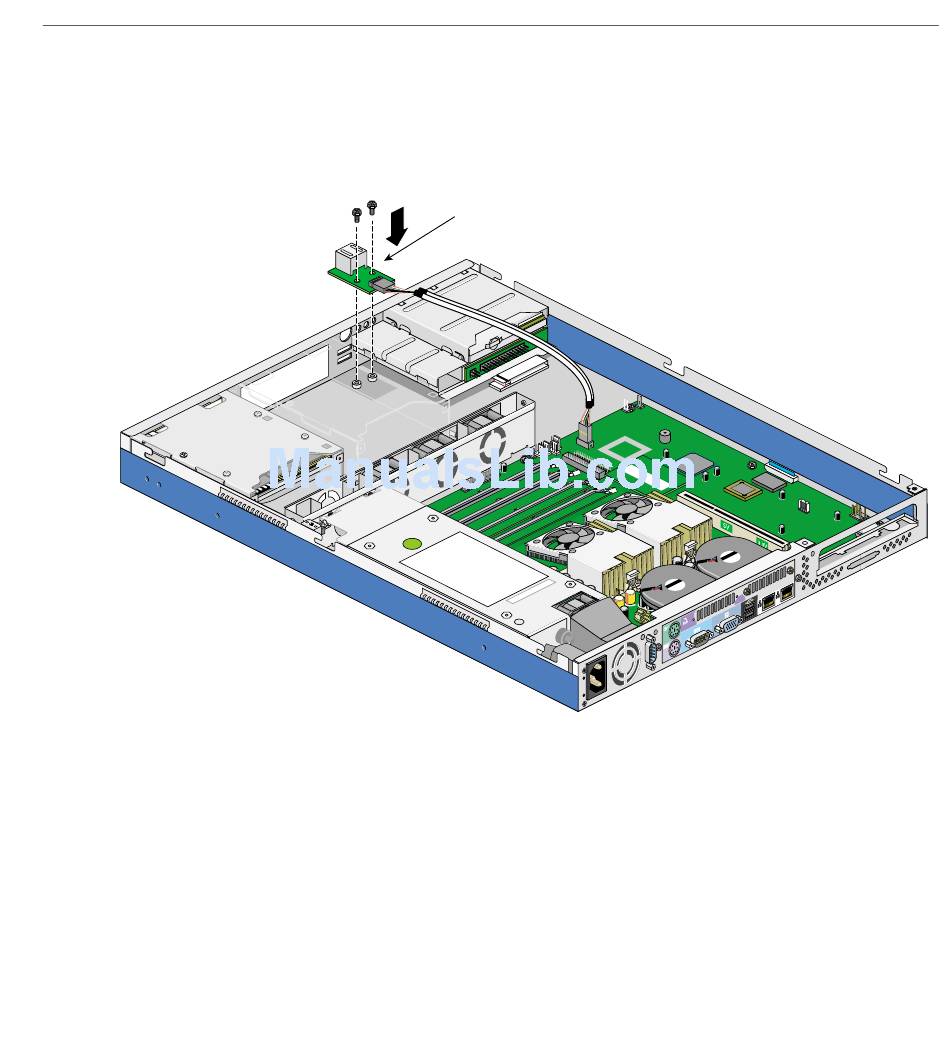

Set the USB daughterboard cable module in place and secure it with two screws as
shown in Figure 2-22.
Installing the USB Daughterboard Cable Module
Figure 2-22
2. Connect the USB daughterboard cable connector to the system board connector
CN30. See Figure 2-20 for the location of the USB daughterboard cable connector.
3. Install the chassis cover as described in "Installing the Chassis Cover" on page 23.
USB daughterboard
Replacing the Cable Modules
47
