Ethernet Ports (RJ45)
007-4047-001
The SGI 1100 server has two RJ45 ports for 10-Base-T or 100-Base-TX twisted-pair
Ethernet. The ports autoselect the speed (10 Mbps or 100 Mbps) and type (half duplex or
full duplex) at bootup, based on what they are connected to.

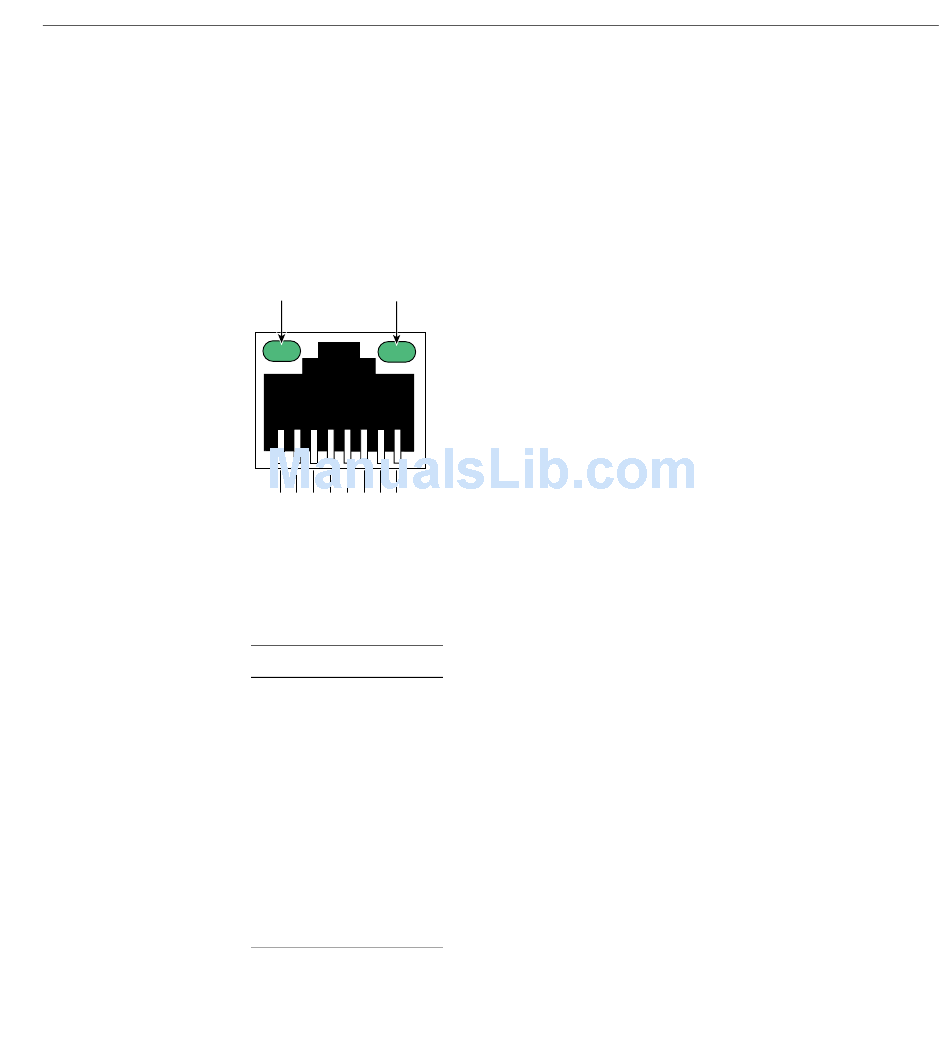

Figure C-6 shows the Ethernet port.
100 Mb 10 Mb
8 7 6 5 4 3 2 1
Figure C-6 Ethernet Port Pinout
Table C-6 shows the cable pinout assignments for the Ethernet port.
Table C-6 Ethernet Port Pinout
Pin Assignment
1 Transmit+
2 Transmit–
3 Receive+
4 (Reserved)
5 (Reserved)
6 Receive–
7 (Reserved)
8 (Reserved)
