Ethernet Port

Transmit
LED
(green)
Packet detect
LED
(yellow)

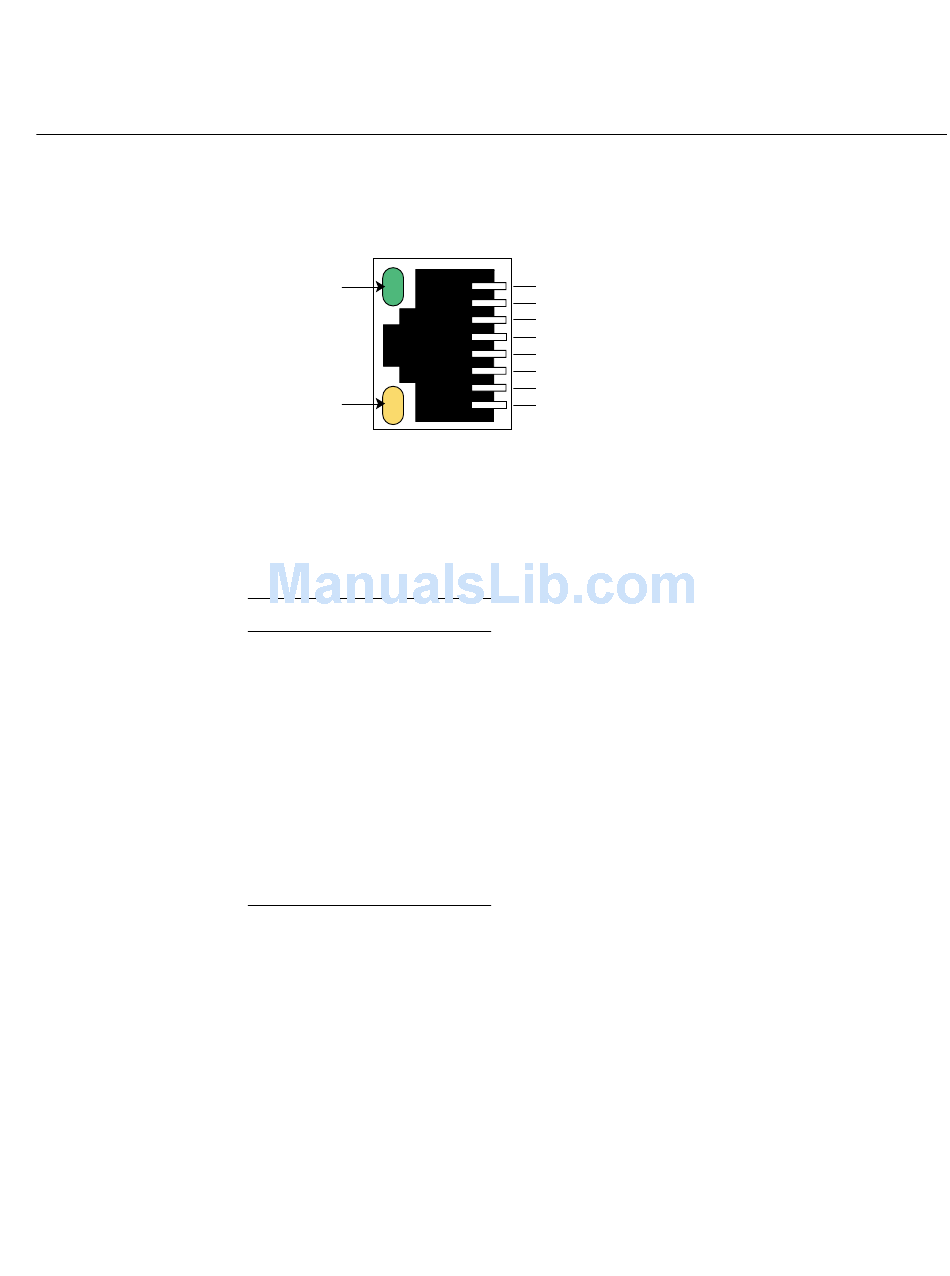

Figure A-3 Origin200 Ethernet 10-Base-T/100-Base-TX Port Pinout Assignments
Table A-4 shows the connector pinout assignments for the Ethernet
port.
Table A-4 Origin200 Ethernet 10-Base-T/100-Base-TX Port Pin Assignments
Pin Assignment
1 Transmit +
2 Transmit –
3 Receive +
4 (Reserved)
5 (Reserved)
6 Receive –
7 (Reserved)
8 (Reserved)
1
2
3
4
5
6
7
8

Ethernet Port

10-Base-T/100-Base-TX
231
