3. Install the screws at the rear of the system, as shown in Figure 10-17.
• Six screws secure the power supply to the chassis.

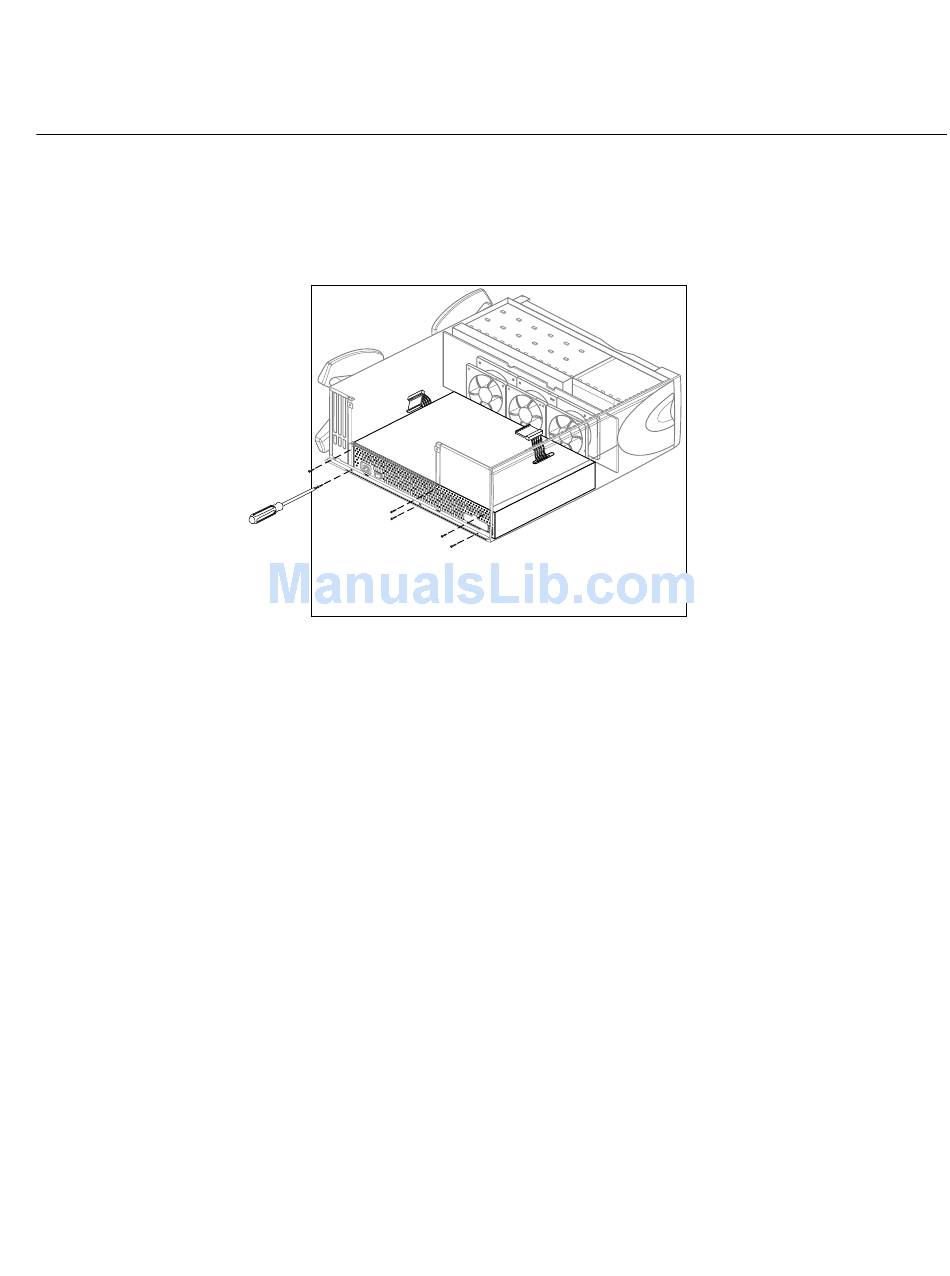

Location of Origin200 Server Power Supply Screws
Figure 10-17
4. Reconnect some of the cables: fan power cables, SCSI drive power cable, module
system controller cable.
5. Install the logic carrier and any PCI boards.
6. Replace the chassis access cover.
7. If the system is in a tower configuration, replace both side panels.
1
2 3
4 5 6
7 8
Removing and Replacing Internal Parts
217
