3. Lift the fan out of the system, as shown in Figure 10-4.

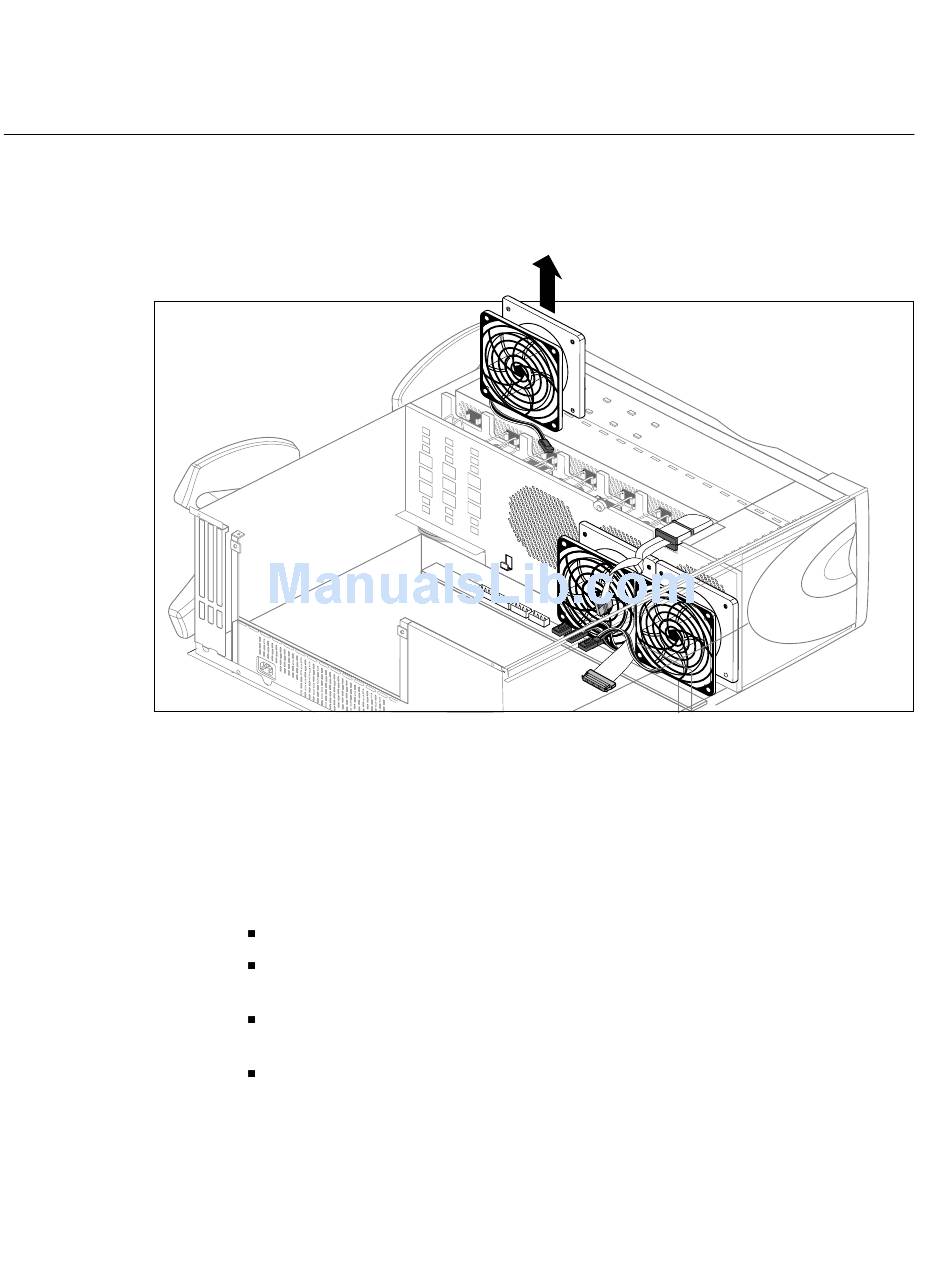

Figure 10-4 Removing the Fan From the System

Installing a New Fan

Follow these steps to install a fan:
1. Lower the new fan into the system.
2. Snap a plastic rivet in the top corners of the fan to secure it to the sheet metal.
The rivet has two parts: a sleeve and a pin.
Place the pin partway inside the sleeve, then slide both through the hole in the
fan.
Press the pin and sleeve together towards the sheet metal. The pin and sleeve
will slide into place with the ends of both protruding through the sheet metal.
If you have large hands or fingers, you may find it easier to handle the rivets
with needlenose pliers or large tweezers.
