3: Advanced Node Board Setup

Power Supply Fail LED Connector Pin Definitions (JP3)

Ethernet Port (LAN1/LAN2)

3-68
Table 3-22
lists the power supply fail LED connector pin definitions (JP3).
location of the connector JP3 on the node board.

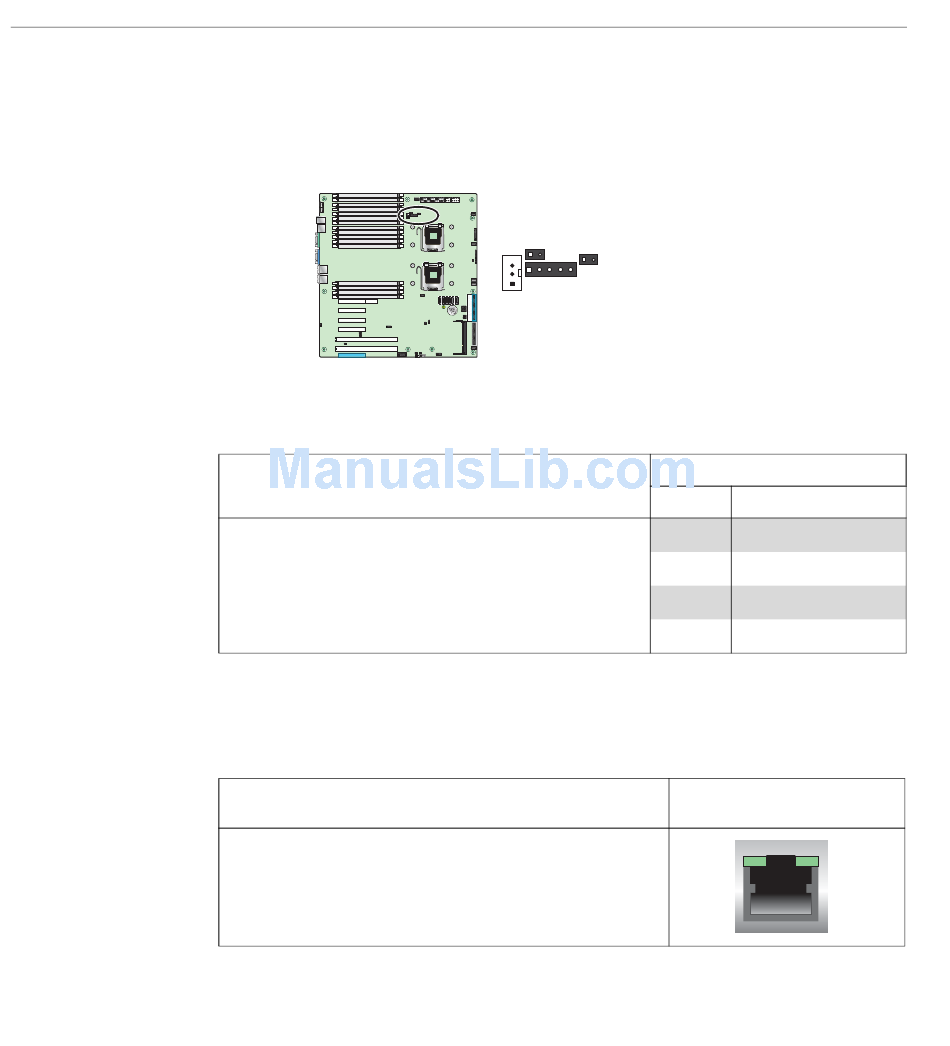

Figure 3-18
Power Supply Fail LED Connector Location
Table 3-22
Power Supply Fail LED Pin Definitions (JP3)
A cable is connected from the power supply to JP3 to provide
warning of power supply failure. This warning signal is passed
through the PWR_LED pin to indicate of a power failure on the
chassis (refer to
Figure
3-18).
Table 3-23
Ethernet Ports (LAN1/LAN2)
Two gigabit Ethernet ports (designated LAN1 and LAN2) are located
on the I/O panel. These ports accept RJ45 type cables.
JAR
J3P
SMBUS
JP3
Notes
Notes
Figure 3-18
shows the
JP3
Pin#
Definition
1
PWR 1: Fail
2
PWR 2: Fail
3
PWR 3: Fail
4
Signal: Alarm Reset
Ethernet Ports
LAN1/LAN2
007-5467-001
