Ethernet Port

007-6402-001
The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server
is booted, based on what it is connected to. Figure A-2 shows the Ethernet port.
Pin 4
Pin 3
Pin 2
Pin 1

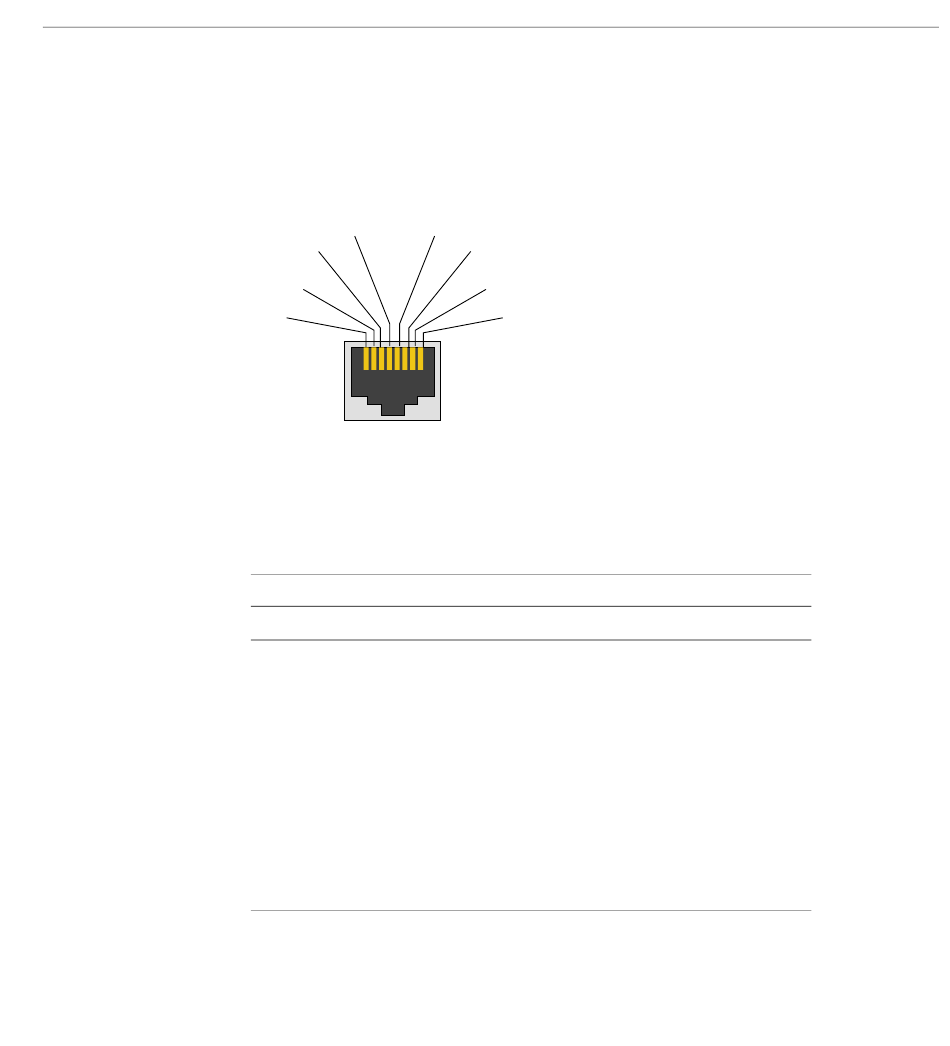

Figure A-2
Ethernet Port
Table A-6 shows the cable pinout assignments for the Ethernet port operating in 10/100-Base-T
mode and also operating in 1000Base-T mode.
Table A-6
Ethernet Pinouts
Ethernet 10/100Base-T Pinouts
Pins Assignment
1 Transmit +
2 Transmit –
3 Receive +
4 NU
5 NU
6 Receive –
7 NU
8 NU
NU = Not used
Pin 5
Pin 6
Pin 7
Pin 8
Gigabit Ethernet Pinouts
Pins
1
2
3
4
5
6
7
8
I/O Port Specifications
Assignment
Transmit/Receive 0 +
Transmit/Receive 0 –
Transmit/Receive 1 +
Transmit/Receive 2 +
Transmit/Receive 2 –
Transmit/Receive 1 –
Transmit/Receive 3 +
Transmit/Receive 3 –
87
