Chapter 4: Operating an Origin200 System

Front Panel Functions: Status LED, Power, Reset, NMI

76
The front panel provides the following features:
•

status LED

• front power switch
• reset button
• nonmaskable interrupt (NMI) button

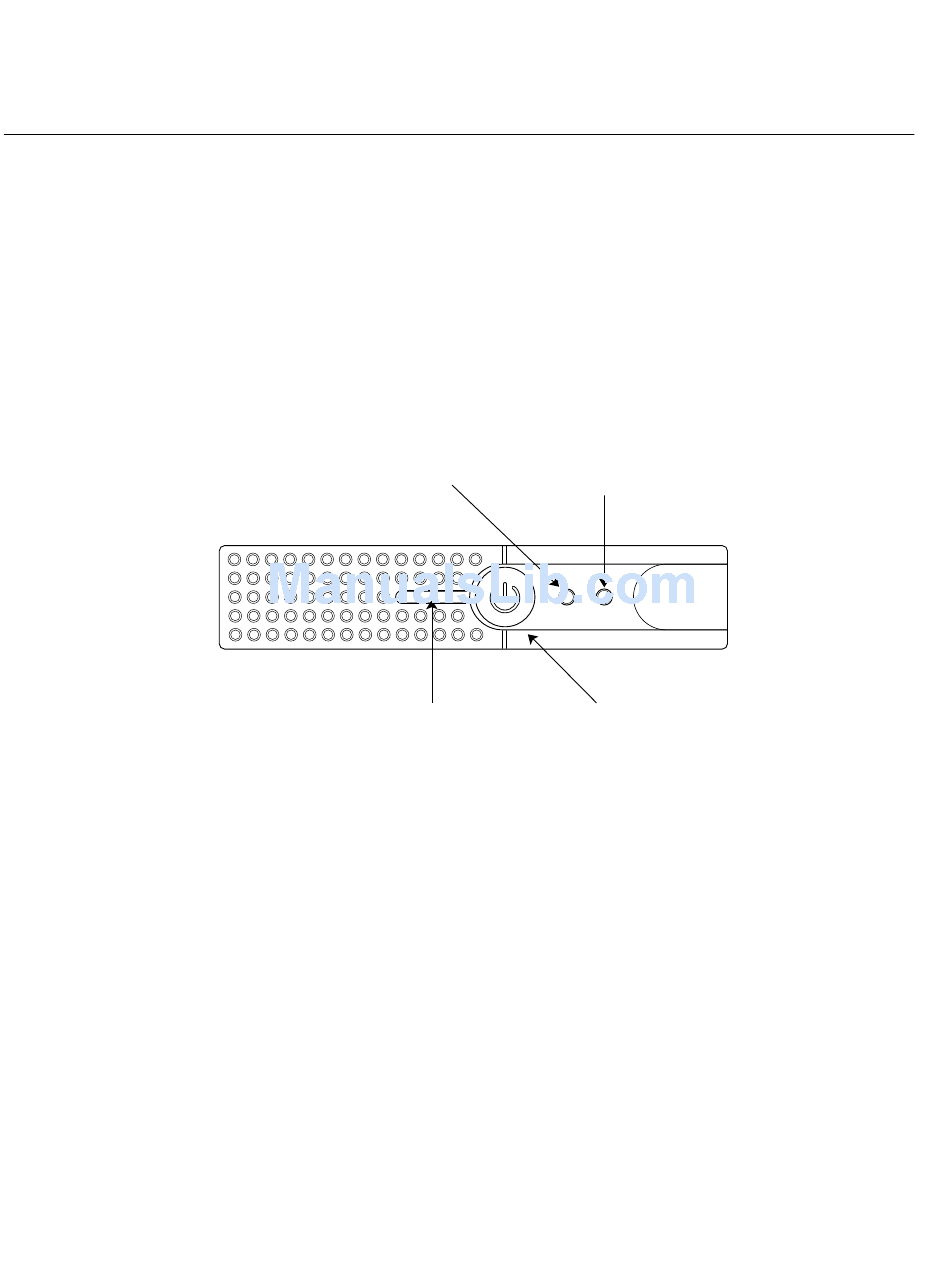

Figure 4-1 shows the locations of these features.
Nonmaskable Interrupt
(NMI) button
Figure 4-1 The Origin200 Front Panel
Status LED
The actual status LED is part of the system controller assembly, which is located behind
the front panel. A piece of light-conductive plastic (light pipe) channels the light from the
LED to the front panel.
When the master power switch is turned on, the status LED flashes green briefly, but
does not stay illuminated. When the system boots, the LED flashes red momentarily, then
turns green.
For a complete list of status LED codes, see "Status LED Messages" in Chapter 9.
Reset button
Status LED Front Power switch
