Chapter 3: Installing an Origin200 System in a Rack

Installing the Rackmounting Shelf

68
The mounting shelf provided with the Origin200 server takes up 4 U (7 inches, or 17.8
cm) of space in the rack and supports the weight of the server.
Follow these steps to install the mounting shelf in your equipment rack:
1. Locate four 10-32 x 1/2-inch screws and the four washers (#10, .203 ID x .562 OD x
.040 inch thick) included with the system.
2. Install the mounting shelf in the rack, attaching it with the four screws.
Place a washer between each screw head and the mounting shelf, as shown in
Figure 3-4.

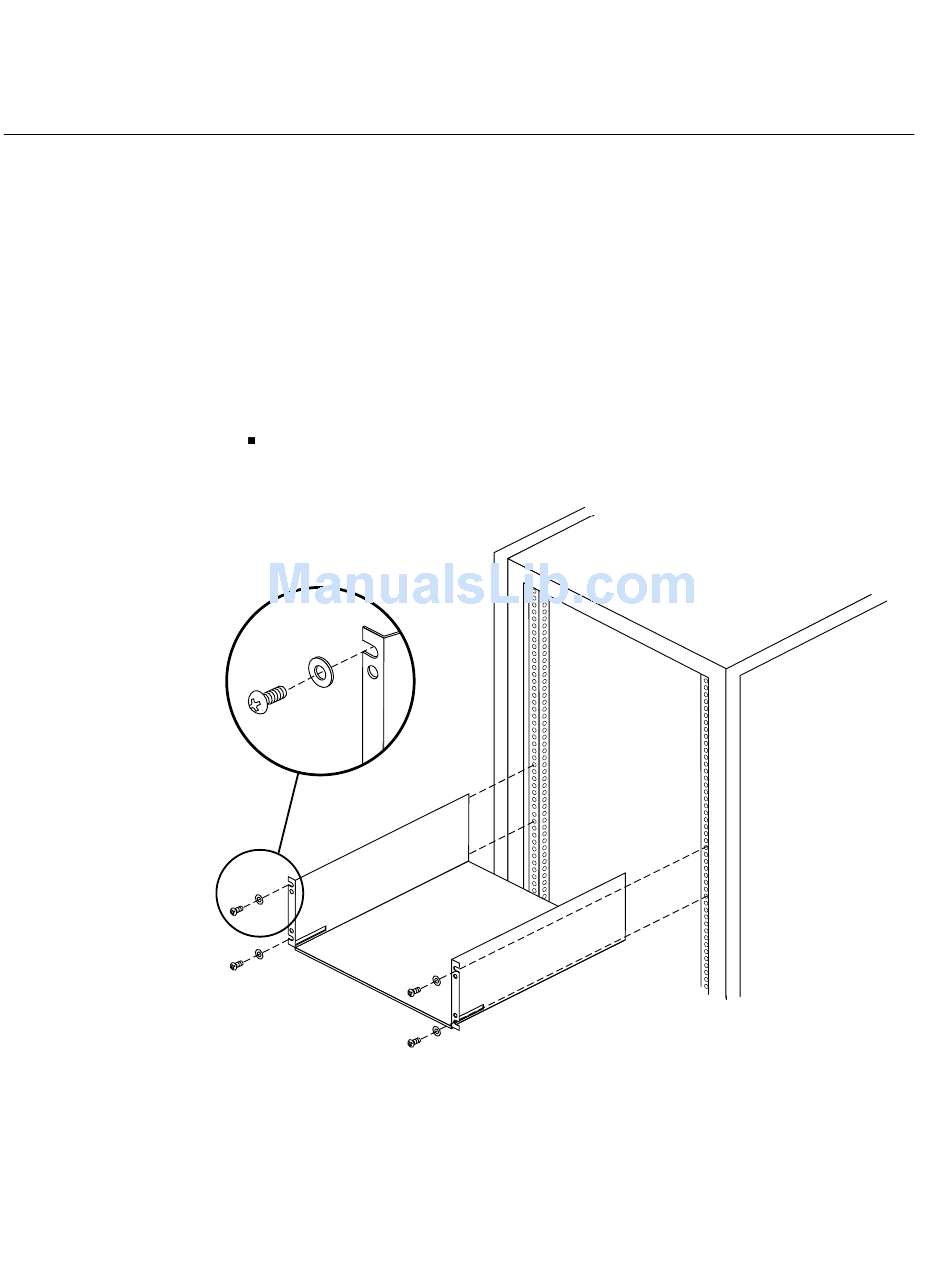

Figure 3-4 Installing the Rackmounting Shelf
