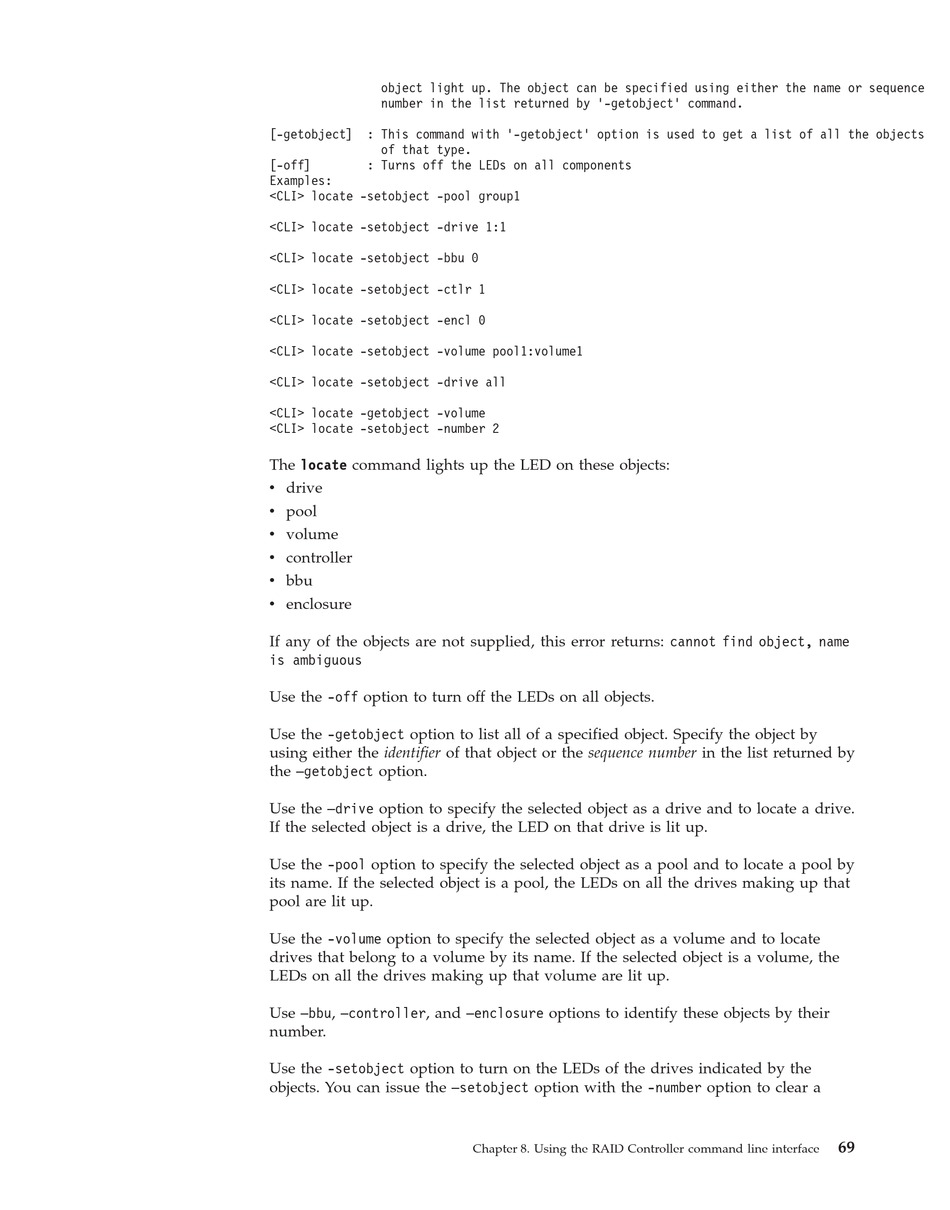

IBM BladeCenter S SAS RAID Controller Module Installation And User Manual page 79

object light up. The object can be specified using either the name or sequence
number in the list returned by '-getobject' command.
[-getobject] : This command with '-getobject' option is used to get a list of all the objects
of that type.
[-off] : Turns off the LEDs on all components
Examples:
<CLI> locate -setobject -pool group1
<CLI> locate -setobject -drive 1:1
<CLI> locate -setobject -bbu 0
<CLI> locate -setobject -ctlr 1
<CLI> locate -setobject -encl 0
<CLI> locate -setobject -volume pool1:volume1
<CLI> locate -setobject -drive all
<CLI> locate -getobject -volume
<CLI> locate -setobject -number 2
The locate command lights up the LED on these objects:
v drive
v pool
v volume
v controller
v bbu
v enclosure
If any of the objects are not supplied, this error returns: cannot find object, name
is ambiguous
Use the -off option to turn off the LEDs on all objects.
Use the -getobject option to list all of a specified object. Specify the object by
using either the identifier of that object or the sequence number in the list returned by
the –getobject option.
Use the –drive option to specify the selected object as a drive and to locate a drive.
If the selected object is a drive, the LED on that drive is lit up.
Use the -pool option to specify the selected object as a pool and to locate a pool by
its name. If the selected object is a pool, the LEDs on all the drives making up that
pool are lit up.
Use the -volume option to specify the selected object as a volume and to locate
drives that belong to a volume by its name. If the selected object is a volume, the
LEDs on all the drives making up that volume are lit up.
Use –bbu, –controller, and –enclosure options to identify these objects by their
number.
Use the -setobject option to turn on the LEDs of the drives indicated by the
objects. You can issue the –setobject option with the -number option to clear a
Chapter 8. Using the RAID Controller command line interface
69
