SAS Connectivity Card (CIOv) for IBM BladeCenter
IBM BladeCenter at-a-glance guide
The SAS Connectivity Card (CIOv) for IBM BladeCenter is an expansion card that offers the ideal way to
connect the supported BladeCenter servers to a wide variety of SAS storage devices. Built on proven 3
Gbps, full-duplex, SAS technology, the SAS Connectivity Card can connect to the IBM System Storage
DS3200 from the BladeCenter E or H chassis, and to multiple Disk Storage Modules in the BladeCenter
S. The card routes the pair of SAS channels from the blade's onboard SAS controller to SAS switches
installed in the BladeCenter chassis.
This card is installed into the CIOv slot of the supported blade server. It provides connections to SAS
modules located in bays 3 and 4 of supported BladeCenter chassis. The SAS Connectivity Card (CIOv) is
shown in Figure 1.

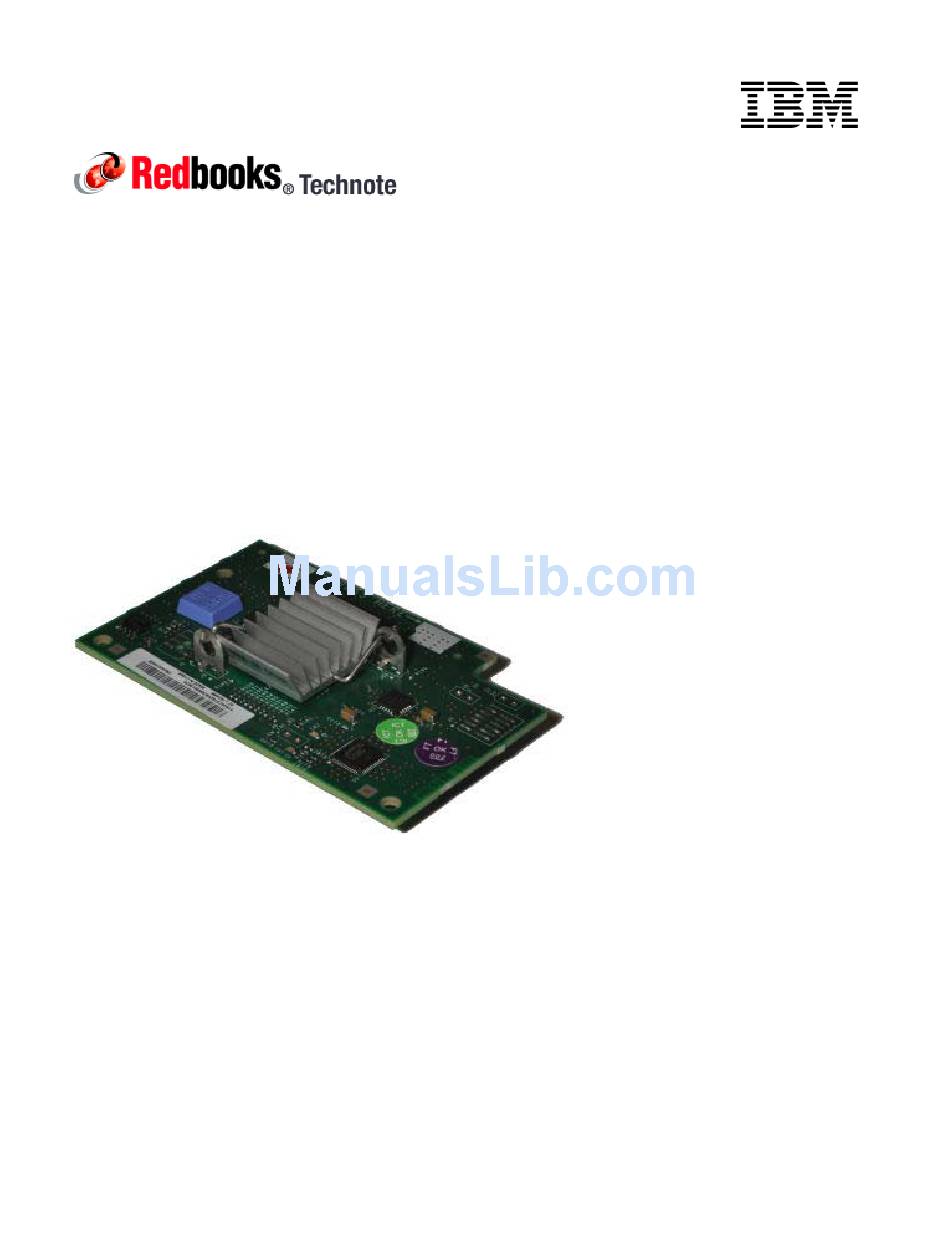

Figure 1. SAS Connectivity Card (CIOv) for IBM BladeCenter
Did you know?
The adapter is based on the PCI Express bus, which can be thought of as a high-speed serial
replacement of the older technology. Its use offers many benefits, including higher speeds and the ability
to send and receive data at the same time.
When using the CIOv adapter, you can simultaneously use a CFFh adapter to enable more types of I/O to
supported blade servers such as the HS22 when installed in the IBM BladeCenter H chassis. The
innovative design of the CIOv adapter works with the CFFh adapter to support this combination.
Serial Attached SCSI (SAS) is a point-to-point architecture in which all storage devices connect directly to
a SAS port rather than sharing a common bus as traditional SCSI devices do. Point-to-point links increase
data throughput and improve the ability to locate and fix disk failures. SAS architecture solves the parallel
SCSI problems of clock skew and signal degradation at higher signaling rates.
SAS Connectivity Card (CIOv) for IBM BladeCenter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAS Connectivity Cars and is the answer not in the manual?

Questions and answers

Summary of Contents for IBM SAS Connectivity Cars

  • Page 1 SAS Connectivity Card (CIOv) for IBM BladeCenter IBM BladeCenter at-a-glance guide The SAS Connectivity Card (CIOv) for IBM BladeCenter is an expansion card that offers the ideal way to connect the supported BladeCenter servers to a wide variety of SAS storage devices. Built on proven 3...
  • Page 2: Part Number Information

    Relative humidity: 8% to 80% Maximum altitude: 2,133 m (7,000 ft) Supported servers and I /O modules The SAS Connectivity Card (CIOv) is supported in the IBM BladeCenter servers listed in Table 2. Table 2. Supported servers Part Expansion card...
  • Page 3 CIOv expansion cards are installed in the CIOv slot in supported servers such as the HS22, as shown in Figure 2. Figure 2. Location of the CIOv slot in the IBM BladeCenter HS22 The SAS Connectivity Card (CIOv) requires that a supported I/O module is installed in bay 3 (and bay 4 depending on the configuration) of the chassis in which the cards and servers are installed.
  • Page 4: Popular Configurations

    External DS3200 attachment Figure 3 shows the supported topology for the SAS Connectivity Card (CIOv) and an IBM System Storage DS3200 storage server connected to the BladeCenter E or BladeCenter H chassis. In this configuration, the RAID functionality is provided by the external DS3200 storage server.
  • Page 5 The configuration shown in Figure 4 connects the onboard SAS RAID controller of support blade servers to the integrated BladeCenter S storage using the SAS Connectivity Card (CIOv) in each server and IBM SAS Connectivity Modules in the BladeCenter S chassis. In this configuration, the RAID functionality is provided by the RAID controller on the system planar of the blade server.
  • Page 6 At least one BladeCenter S Disk Storage Module (DSM) must be installed into the BladeCenter S chassis; a maximum of two DSMs are supported in one chassis. The IBM BladeCenter S does not ship with any DSMs as standard.
  • Page 7 The configuration shown in Figure 5 connects the SAS Connectivity Card (CIOv) installed in each blade server to the integrated BladeCenter S storage using two IBM BladeCenter S SAS RAID Controller Modules in the BladeCenter S chassis. In this configuration, the RAID functionality is provided by the RAID Controller Modules in the BladeCenter chassis (and not by the RAID controller that is on the blade server's system planar).
  • Page 8 At least one DSM must be installed into the BladeCenter S chassis; a maximum of two DSMs are supported in one chassis. The IBM BladeCenter S does not ship with any DSMs as standard. Two SAS RAID Controller Modules must be installed into the BladeCenter S chassis.
  • Page 9: Supported Operating Systems

    SUSE Linux Enterprise Server 10 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 10 with Xen for x86 See IBM ServerProven for the latest information on the specific versions and service packs supported: http://ibm.com/servers/eserver/serverproven/compat/us/. Select the blade server and then select the expansion card to see the supported operating systems.
  • Page 10 Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
  • Page 11 Machines Corporation in the United States, other countries, or both. These and other IBM trademarked terms may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml...
