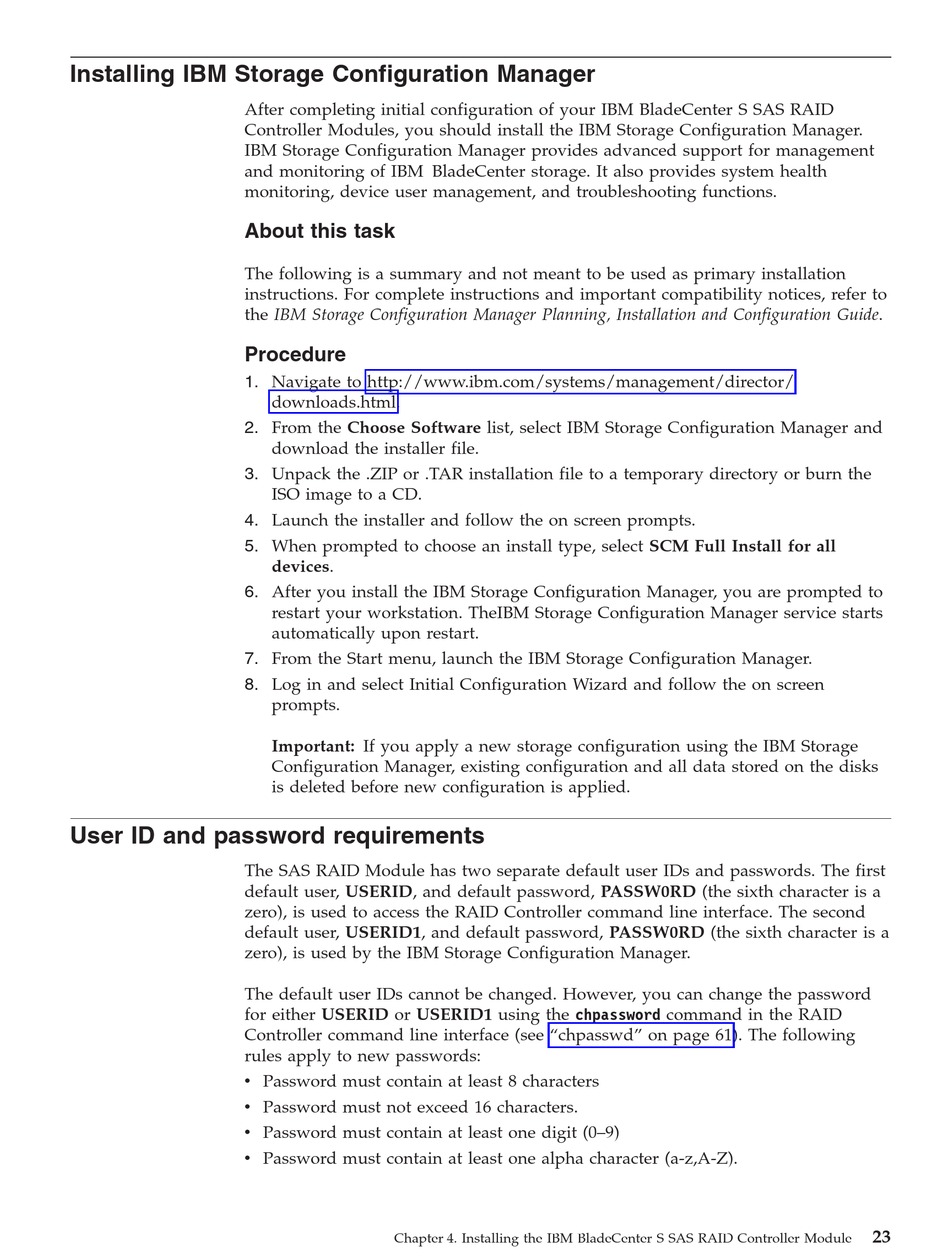

Installing IBM Storage Configuration Manager

After completing initial configuration of your IBM BladeCenter S SAS RAID
Controller Modules, you should install the IBM Storage Configuration Manager.
IBM Storage Configuration Manager provides advanced support for management
and monitoring of IBM BladeCenter storage. It also provides system health
monitoring, device user management, and troubleshooting functions.
About this task
The following is a summary and not meant to be used as primary installation
instructions. For complete instructions and important compatibility notices, refer to
the IBM Storage Configuration Manager Planning, Installation and Configuration Guide.
Procedure
1. Navigate to http://www.ibm.com/systems/management/director/
2. From the Choose Software list, select IBM Storage Configuration Manager and
3. Unpack the .ZIP or .TAR installation file to a temporary directory or burn the
4. Launch the installer and follow the on screen prompts.
5. When prompted to choose an install type, select SCM Full Install for all
6. After you install the IBM Storage Configuration Manager, you are prompted to
7. From the Start menu, launch the IBM Storage Configuration Manager.
8. Log in and select Initial Configuration Wizard and follow the on screen

User ID and password requirements

The SAS RAID Module has two separate default user IDs and passwords. The first
default user, USERID, and default password, PASSW0RD (the sixth character is a
zero), is used to access the RAID Controller command line interface. The second
default user, USERID1, and default password, PASSW0RD (the sixth character is a
zero), is used by the IBM Storage Configuration Manager.
The default user IDs cannot be changed. However, you can change the password
for either USERID or USERID1 using the chpassword command in the RAID
Controller command line interface (see "chpasswd" on page 61). The following
rules apply to new passwords:
v Password must contain at least 8 characters
v Password must not exceed 16 characters.
v Password must contain at least one digit (0–9)
v Password must contain at least one alpha character (a-z,A-Z).
downloads.html.
download the installer file.
ISO image to a CD.
devices.
restart your workstation. TheIBM Storage Configuration Manager service starts
automatically upon restart.
prompts.
Important: If you apply a new storage configuration using the IBM Storage
Configuration Manager, existing configuration and all data stored on the disks
is deleted before new configuration is applied.
Chapter 4. Installing the IBM BladeCenter S SAS RAID Controller Module
23
