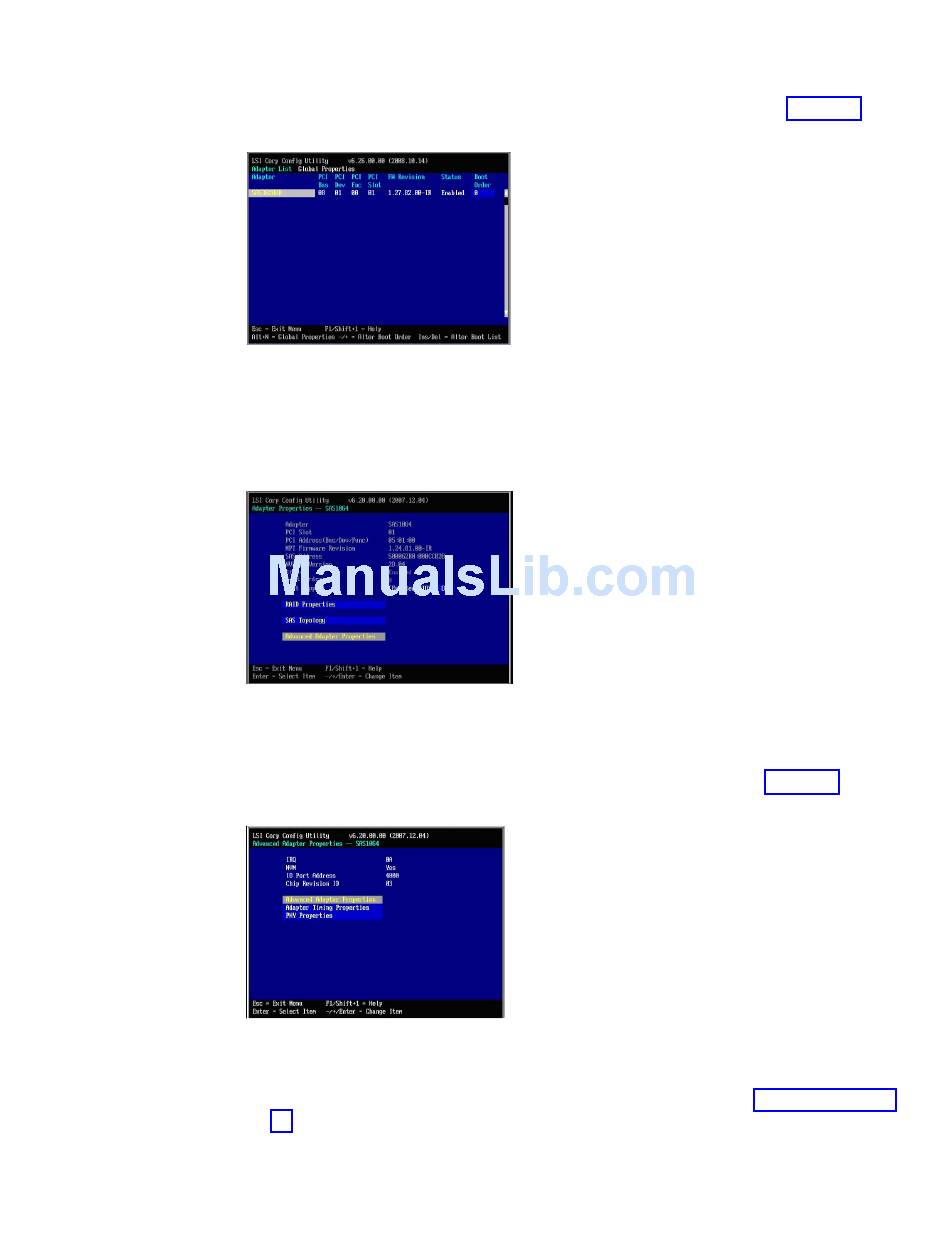

3. When the <<<Press Ctrl-C to start LSI Logic Configuration Utility>>>
prompt displays during system boot, press Ctrl+C to enter the LSI Logic
Configuration Utility. The Adapter List screen displays, similar to Figure 10.
Figure 10. Adapter List screen showing SAS Expansion Card
4. Use the arrow keys to select the external SAS adapter then press Enter to
display the Adapter Properties screen. Ensure that Boot Support is set to
[Enabled BIOS & OS].
Figure 11. Adapter Properties screen showing enabled BIOS and OS boot support for the
SAS Expansion Card
5. Use the arrow keys to select Advanced Adapter Properties, then press Enter.
The Advanced Adapter Properties screen displays as shown in Figure 12.
Figure 12. Advanced Adapter Properties screen
6. Use the arrow keys to select Advanced Device Properties, then press Enter.
The Advanced Device Properties screen displays as shown in Figure 13 on page
44.
Chapter 7. Working with storage pools and volumes
43
