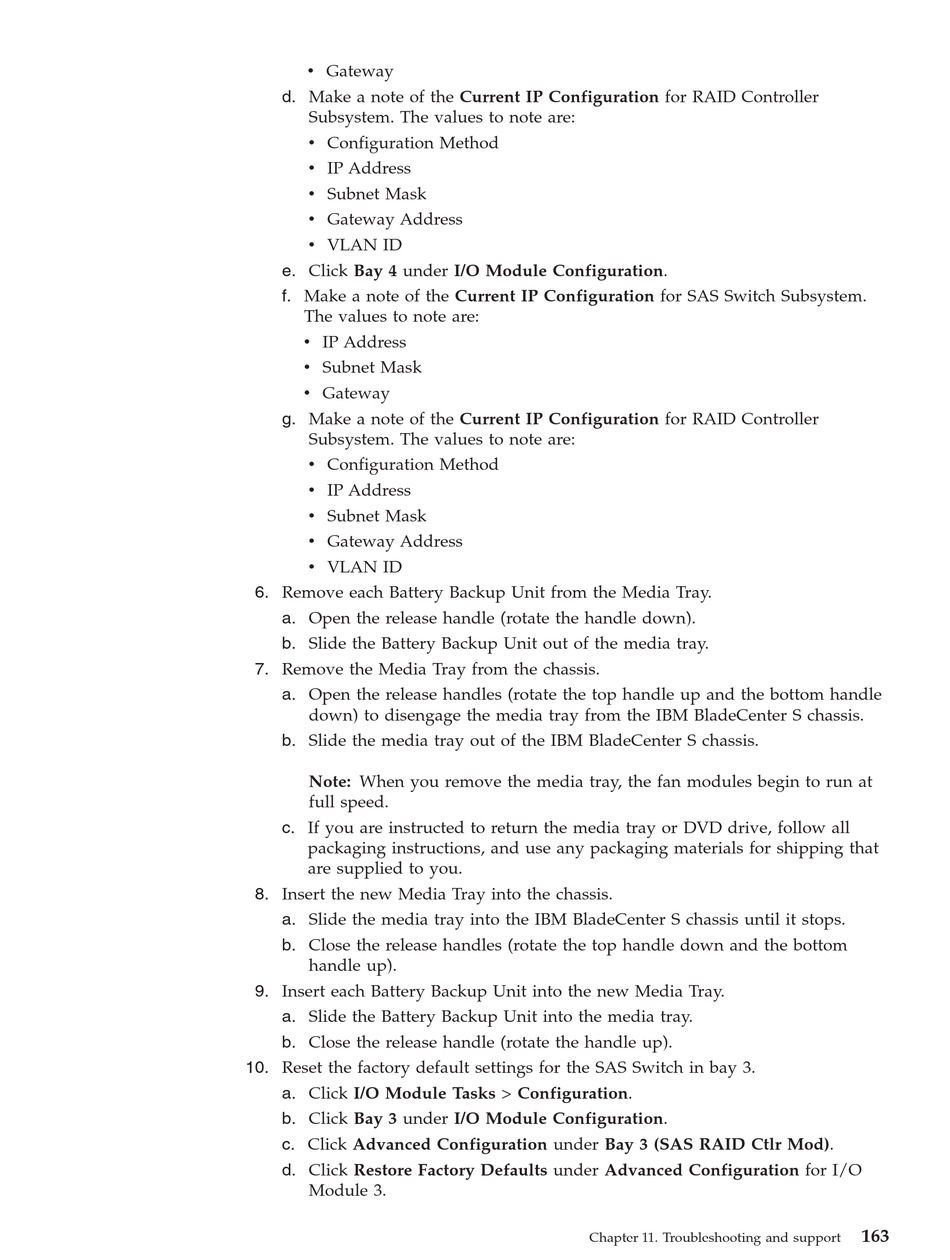

v Gateway
d. Make a note of the Current IP Configuration for RAID Controller
Subsystem. The values to note are:
v Configuration Method
v IP Address
v Subnet Mask
v Gateway Address
v VLAN ID
e. Click Bay 4 under I/O Module Configuration.
f. Make a note of the Current IP Configuration for SAS Switch Subsystem.
The values to note are:
v IP Address
v Subnet Mask
v Gateway
g. Make a note of the Current IP Configuration for RAID Controller
Subsystem. The values to note are:
v Configuration Method
v IP Address
v Subnet Mask
v Gateway Address
v VLAN ID
6. Remove each Battery Backup Unit from the Media Tray.
a. Open the release handle (rotate the handle down).
b. Slide the Battery Backup Unit out of the media tray.
7. Remove the Media Tray from the chassis.
a. Open the release handles (rotate the top handle up and the bottom handle
down) to disengage the media tray from the IBM BladeCenter S chassis.
b. Slide the media tray out of the IBM BladeCenter S chassis.
Note: When you remove the media tray, the fan modules begin to run at
full speed.
c. If you are instructed to return the media tray or DVD drive, follow all
packaging instructions, and use any packaging materials for shipping that
are supplied to you.
8. Insert the new Media Tray into the chassis.
a. Slide the media tray into the IBM BladeCenter S chassis until it stops.
b. Close the release handles (rotate the top handle down and the bottom
handle up).
9. Insert each Battery Backup Unit into the new Media Tray.
a. Slide the Battery Backup Unit into the media tray.
b. Close the release handle (rotate the handle up).
10. Reset the factory default settings for the SAS Switch in bay 3.
a. Click I/O Module Tasks > Configuration.
b. Click Bay 3 under I/O Module Configuration.
c. Click Advanced Configuration under Bay 3 (SAS RAID Ctlr Mod).
d. Click Restore Factory Defaults under Advanced Configuration for I/O
Module 3.
