Component illustrations

The following illustrations show the front and rear views of an IBM BladeCenter S
chassis. Your hardware might have labels not shown in the following illustrations.

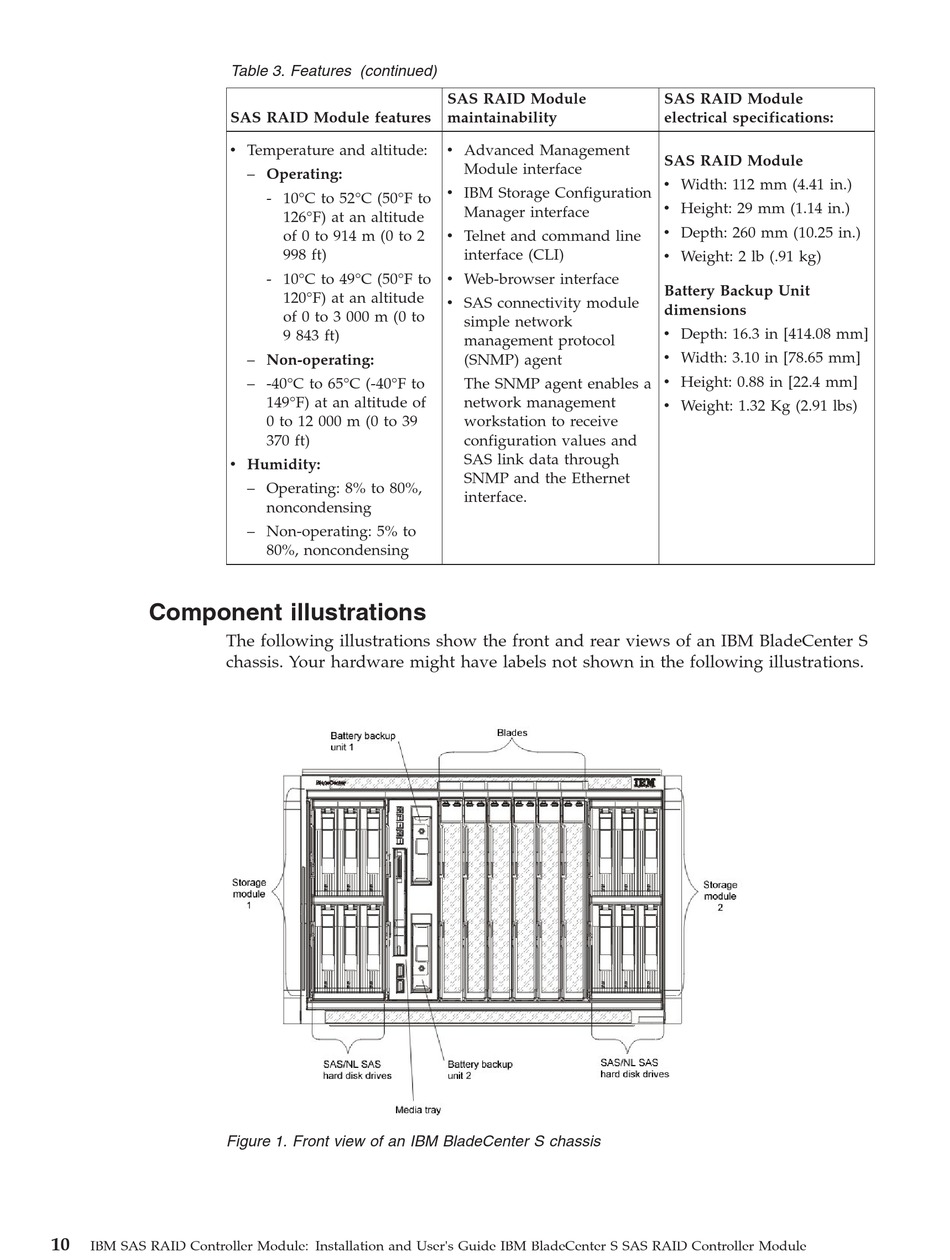

Figure 1. Front view of an IBM BladeCenter S chassis
10
IBM SAS RAID Controller Module: Installation and User's Guide IBM BladeCenter S SAS RAID Controller Module
Table 3. Features (continued)
SAS RAID Module features
v Temperature and altitude:
– Operating:
- 10°C to 52°C (50°F to
126°F) at an altitude
of 0 to 914 m (0 to 2
998 ft)
- 10°C to 49°C (50°F to
120°F) at an altitude
of 0 to 3 000 m (0 to
9 843 ft)
– Non-operating:
– -40°C to 65°C (-40°F to
149°F) at an altitude of
0 to 12 000 m (0 to 39
370 ft)
v Humidity:
– Operating: 8% to 80%,
noncondensing
– Non-operating: 5% to
80%, noncondensing
SAS RAID Module
maintainability
v Advanced Management
Module interface
v IBM Storage Configuration
Manager interface
v Telnet and command line
interface (CLI)
v Web-browser interface
v SAS connectivity module
simple network
management protocol
(SNMP) agent
The SNMP agent enables a
network management
workstation to receive
configuration values and
SAS link data through
SNMP and the Ethernet
interface.
SAS RAID Module
electrical specifications:
SAS RAID Module
v Width: 112 mm (4.41 in.)
v Height: 29 mm (1.14 in.)
v Depth: 260 mm (10.25 in.)
v Weight: 2 lb (.91 kg)
Battery Backup Unit
dimensions
v Depth: 16.3 in [414.08 mm]
v Width: 3.10 in [78.65 mm]
v Height: 0.88 in [22.4 mm]
v Weight: 1.32 Kg (2.91 lbs)
