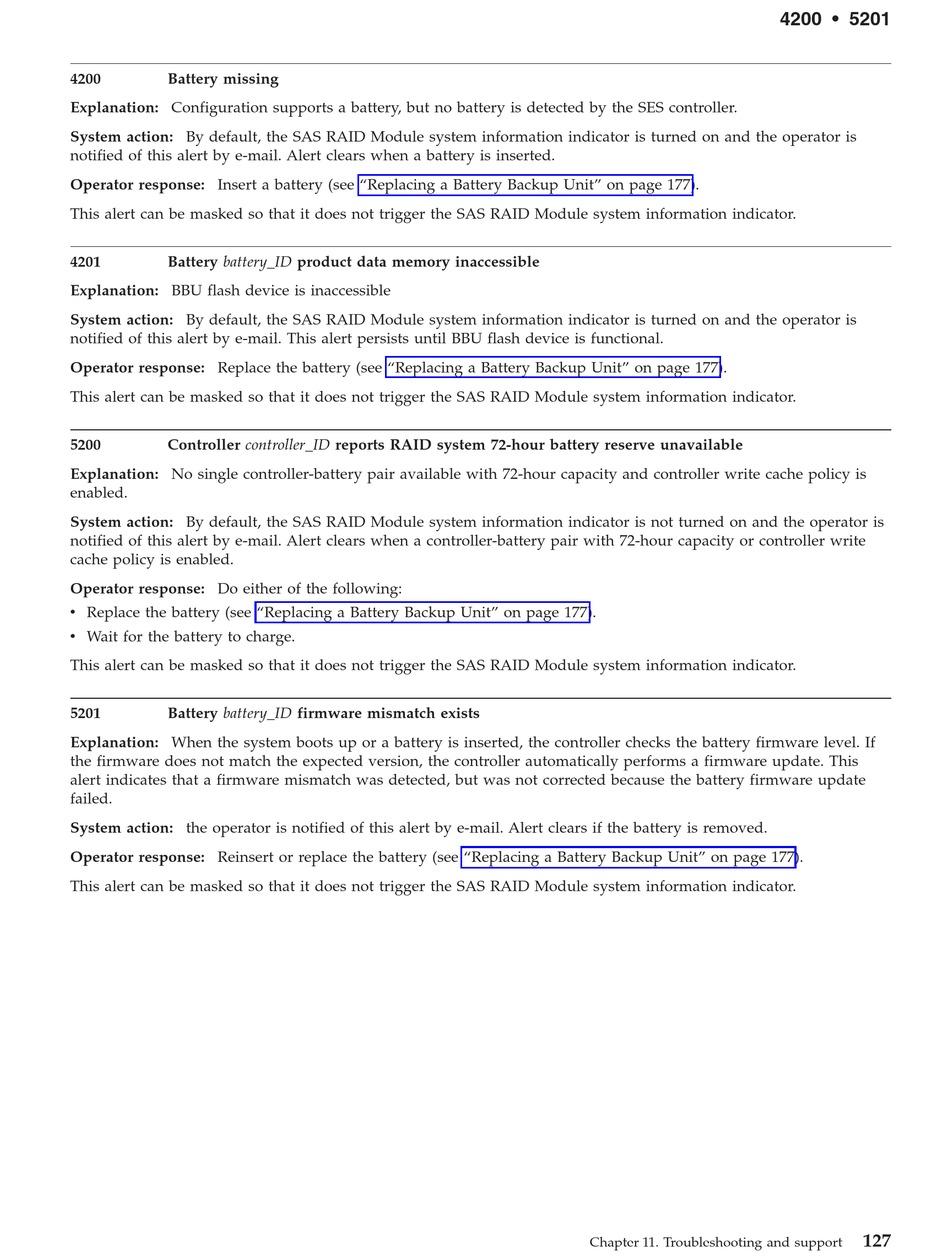

IBM BladeCenter S SAS RAID Controller Module Installation And User Manual page 137

4200 Battery missing
Explanation: Configuration supports a battery, but no battery is detected by the SES controller.
System action: By default, the SAS RAID Module system information indicator is turned on and the operator is
notified of this alert by e-mail. Alert clears when a battery is inserted.
Operator response: Insert a battery (see "Replacing a Battery Backup Unit" on page 177).
This alert can be masked so that it does not trigger the SAS RAID Module system information indicator.
4201 Battery battery_ID product data memory inaccessible
Explanation: BBU flash device is inaccessible
System action: By default, the SAS RAID Module system information indicator is turned on and the operator is
notified of this alert by e-mail. This alert persists until BBU flash device is functional.
Operator response: Replace the battery (see "Replacing a Battery Backup Unit" on page 177).
This alert can be masked so that it does not trigger the SAS RAID Module system information indicator.
5200 Controller controller_ID reports RAID system 72-hour battery reserve unavailable
Explanation: No single controller-battery pair available with 72-hour capacity and controller write cache policy is
enabled.
System action: By default, the SAS RAID Module system information indicator is not turned on and the operator is
notified of this alert by e-mail. Alert clears when a controller-battery pair with 72-hour capacity or controller write
cache policy is enabled.
Operator response: Do either of the following:
v Replace the battery (see "Replacing a Battery Backup Unit" on page 177).
v Wait for the battery to charge.
This alert can be masked so that it does not trigger the SAS RAID Module system information indicator.
5201 Battery battery_ID firmware mismatch exists
Explanation: When the system boots up or a battery is inserted, the controller checks the battery firmware level. If
the firmware does not match the expected version, the controller automatically performs a firmware update. This
alert indicates that a firmware mismatch was detected, but was not corrected because the battery firmware update
failed.
System action: the operator is notified of this alert by e-mail. Alert clears if the battery is removed.
Operator response: Reinsert or replace the battery (see "Replacing a Battery Backup Unit" on page 177).
This alert can be masked so that it does not trigger the SAS RAID Module system information indicator.
