Installing a PCI Riser Card

1. Place the riser card onto the retention pins (see letter "A").
2. Slide the riser card in the direction shown to lock it into place (see letter "B")
3. Secure the riser card using the screw (see letter "C").

Installing and Removing a Slimline Optical Drive

Caution: The slimline optical drive is NOT hot-swappable. Before removing or replacing the drive,
you must first take the server out of service, turn off all peripheral devices connected to the system,
turn off the system by pressing the power button, and unplug the power cord from the system or
wall outlet.
To maintain proper system cooling, a filler panel must be installed if you do not install a device at
this location.
38

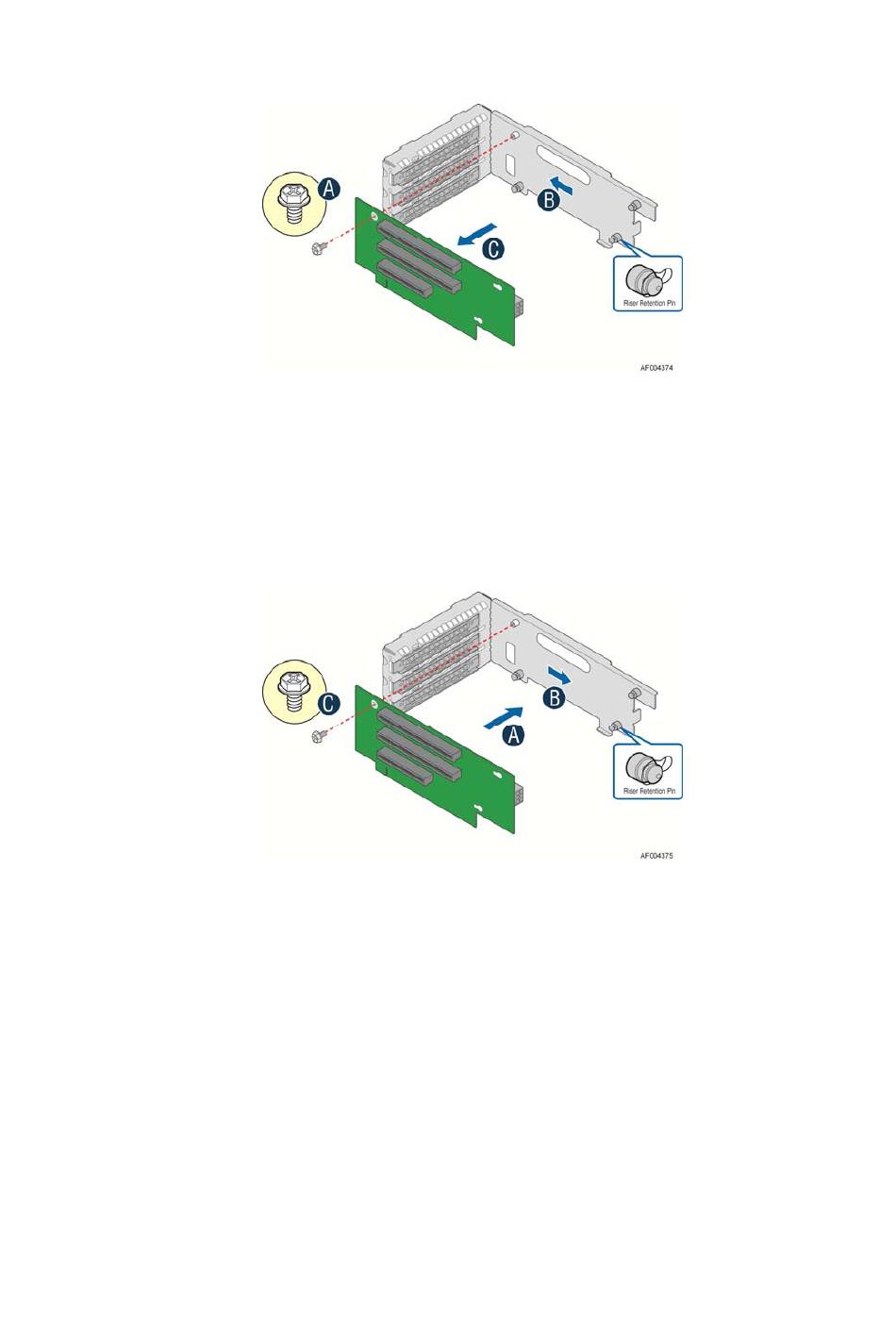

Figure 59. Removing the PCI Riser Card

Figure 60. Installing the PCI Riser Card

®
