Install the Front LED Indicator Module

Related Information
"Server System-Level Status Indicators" on page 29
■
"Install the Front LED Indicator Module" on page 168
■
Install the Front LED Indicator Module
Install the front LED indicator module.
1.

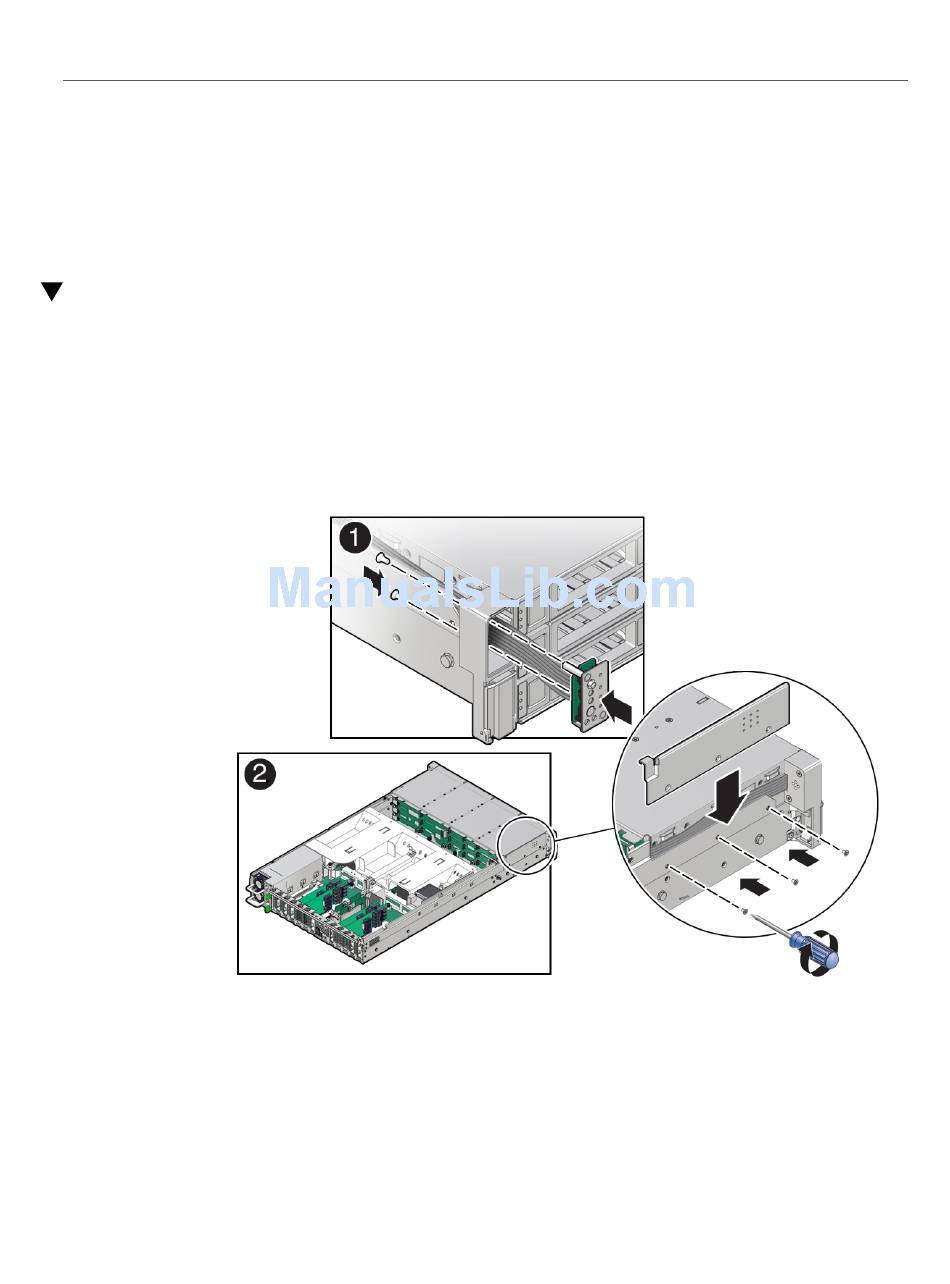

a. Push the LED indicator module and cable through the LED housing on the
server front panel [1].
b. Install the LED indicator module cable by carefully pulling the cable through
the cable trough along the left side of the chassis.
168 Oracle Server X7-2L Service Manual • October 2017
