External wiring connections

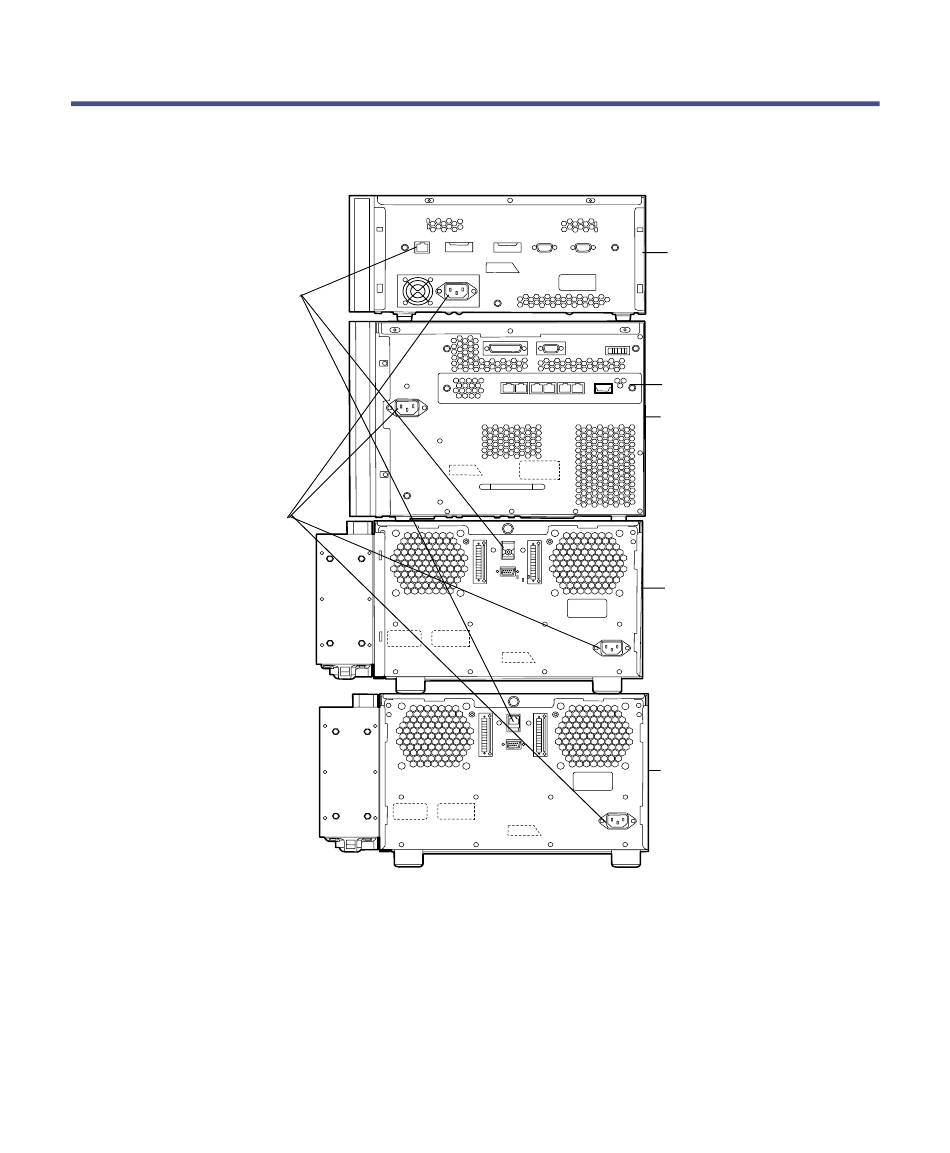

Example of electrical and data wiring:
Ethernet connectors
Power connectors
Ethernet connections
The μSM-FL incorporates an internal, 10/100/1000 megabit, Ethernet switch
that accommodates the PC (workstation) and as many as six system modules.
Connect the shielded Ethernet cables from each module to the electronic
connections on the rear panel of the μSM-FL.
External wiring connections
TVM
Ethernet switch
µSM-FL
µBSM
ASM
