Xenus Plus User Guide
4.5.2: XE2/XP2/XM2/800-1818/800-1819/800-1887 (J5)
The following information is for XE2/XP2/XM2/800-1819/800-1887 drives only.
Mating Connector
Description
Manufacturer PN
Wire Size
Recommended Wire
Wire Insertion/Extraction Tool
Standard connector and tool are included in Connector Kits XE2-CK, XP2-CK and XM2-CK.
Pin Description
Pin
Signal
1
RTN
2
Brake B
3
Brake A
4
Brake+24 Vdc
5
24 Vdc input

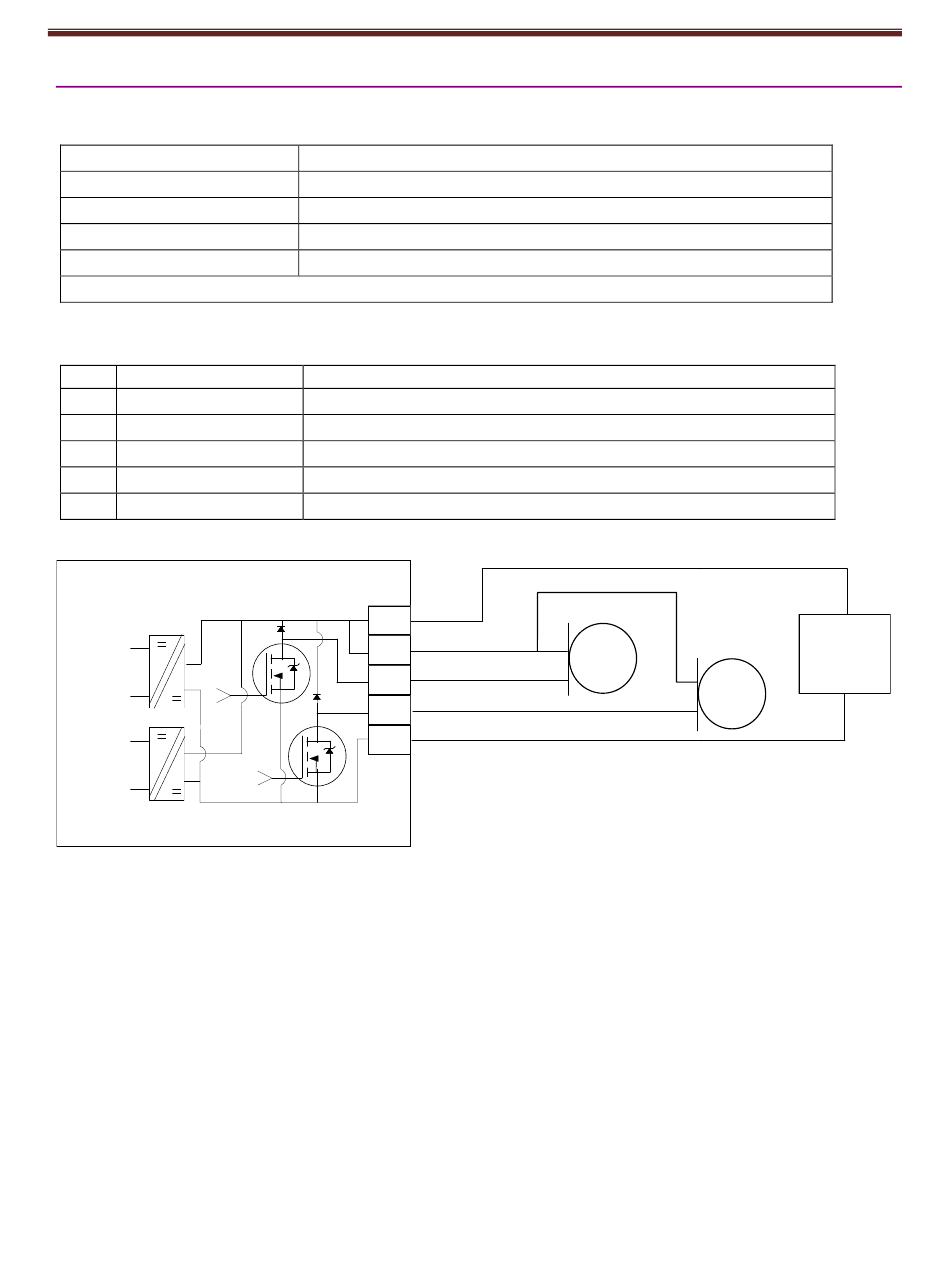

Logic Supply / Brake Wiring Diagram
Drive
Isolated Logic
Pow er Supply
for Brake A
Isolated Logic
Pow er Supply
for Brake B
Note that the +24Vdc supply must be a SELV or PELV type in applications using the XE2/XP2/XM2 STO
feature. See the Xenus Plus Dual-Axis STO Manual for further details.
Copley Controls
Euro-style 3.5 mm, 5 position pluggable female terminal block.
Wago: 734-105/107-000
28 - 14 AWG
18 AWG
Wago: 734-191
Function
+24 Vdc Logic power supply return
Return or low side of motor brake B.
Return or low side of motor brake A.
+24 Vdc for both brakes.
+24 Vdc Logic power supply
J5
+24 V
J5-5
BRK +24 Vdc
J5-4
BRK-A
J5-3
BRK-B
J5-2
RTN
J5-1
16-01344 Rev 06
Brake A
Brake B
+24 Vdc
Power
Supply
(Required)
97
