4.11.2: Isolated Control - XEL/XPL/XML (J9)
Mating Connector
Description
15 Position, High-density, D-Sub, male, solder cup.
Backshell
Solder style connector included in Connector Kits XEL-CK, XML-CK, and XPL-CK.

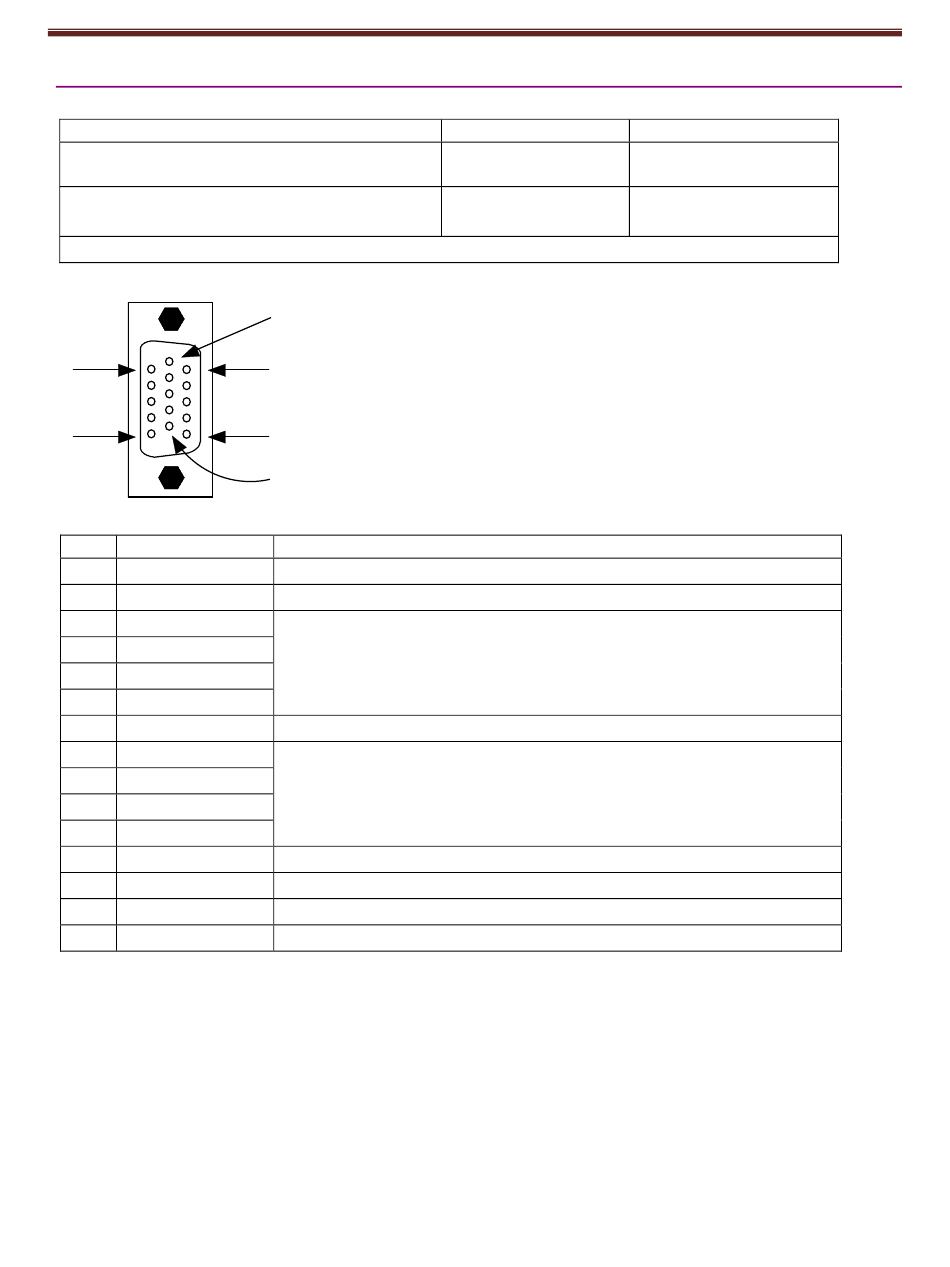

Pin connections for the bulkhead connector on the drive are shown here:
1
5
J9 Pin Description
Pin Signal
1 Frame Ground
2 COMM_A
3 IN7 GPI
4 IN8 GPI
5 IN9 GPI
6 IN10 GPI
7 COMM_B
8 IN11 GPI
9 IN12 GPI
10 IN13 GPI
11 IN14 GPI
12 OUT5+ GPI
13 OUT5- GPI
14 OUT4+ GPI
15 OUT4- GPI
Copley Controls
Manufacturer PN
Norcomp: 180-015-
103L001
Norcomp: 979-009-
020R121
6
11
15
10
Function
Cable shield connection.
Common signal for first group of optically isolated programmable inputs.
Optically isolated programmable input.
Common signal for second group of optically isolated programmable inputs.
Optically isolated programmable input.
Optically isolated programmable output positive signal.
Optically isolated programmable output negative signal.
Optically isolated programmable output positive signal.
Optically isolated programmable output negative signal.
16-01344 Rev 06
Wire Size
24 - 30 AWG
114
