Xenus Plus User Guide

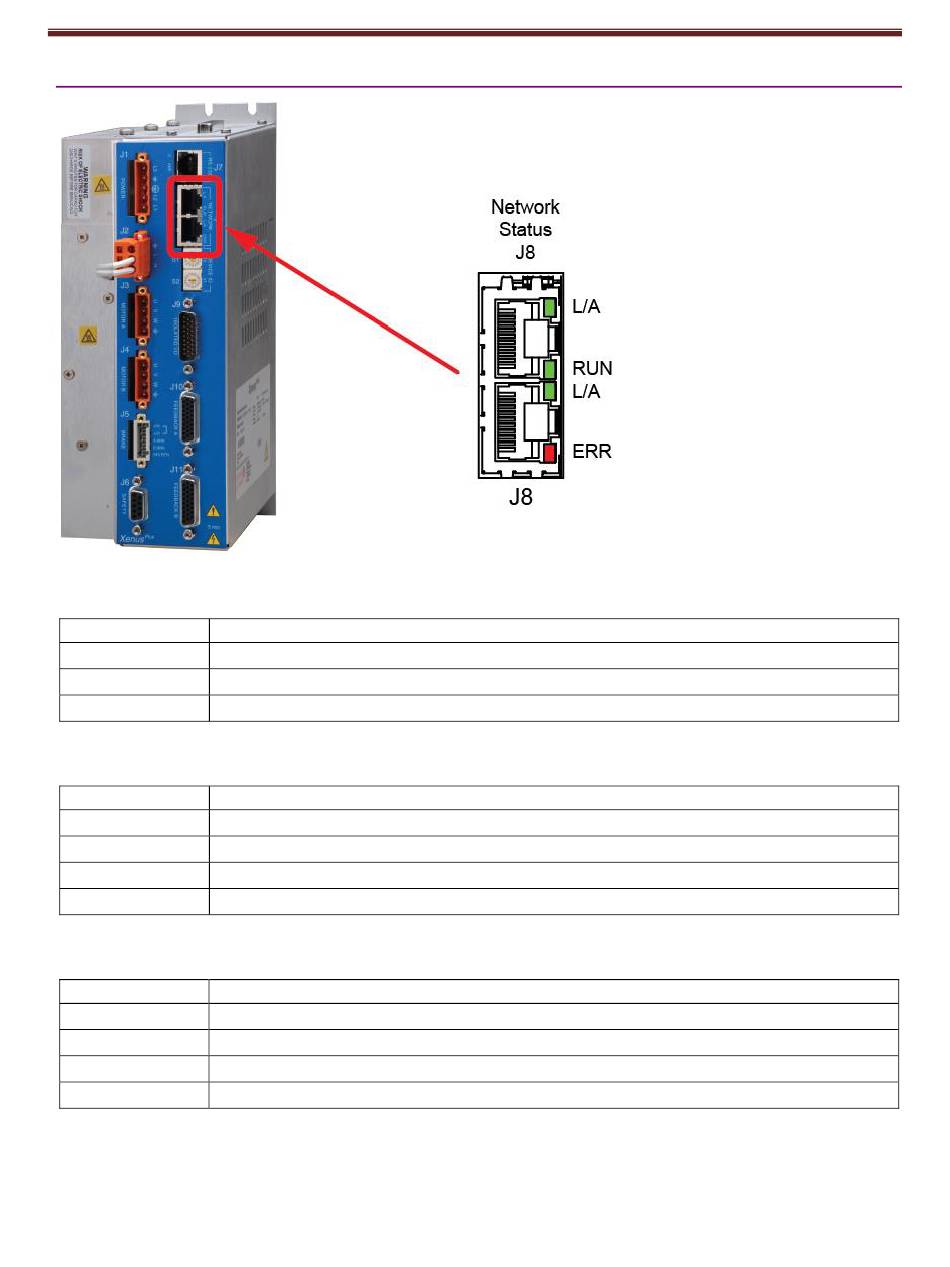

2.5.4: XE2/800-1818/800-1819/800-1887 J8 Network Status Indicators
XE2/800-1818/800-1819/800-1887 J8 L/A Indicators
Shows the state of the physical link and activity on the link.
Meaning
L/A (Green)
Off No link
On Port open, no activity
On and flickering Port open and activity
XE2/800-1818/800-1819/800-1887 J8 RUN Indicator
Indicates the state of the ESM (EtherCAT state machine)
RUN (Green) Meaning
Off Init
Blinking Pre-operational
Single flash Safe-operational
On Operational
XE2/800-1818/800-1819/800-1887 J8 ERR Indicator
Indicates that errors have occurred on the EtherCAT drive or network
Meaning
ERR (Red)
Off EtherCAT communications are working correctly.
Blinking Invalid configuration, general configuration error.
Single flash Local error, slave has changed EtherCAT state autonomously.
Double flash PDO or EtherCAT watchdog timeout, or an application watchdog timeout has occurred,
