Xenus
dIgItal serVo drIVe for brush & brushless Motors
ContRol MoDeS
• Indexer, Point-to-Point, PVT
• Camming, Gearing
• Position, Velocity, Torque
CoMMAnD inteRFACe
• MACRO
• ASCII and discrete I/O
• Stepper commands
• ±10V position/velocity/torque (2 inputs)
• PWM velocity/torque command
• Master encoder (Gearing/Camming)
CoMMUniCAtionS
• MACRO
• RS-232
FeeDBACk
Incremental
• Digital quad A/B encoder
• Analog sin/cos encoder
• Panasonic Incremental A
• Aux. encoder / encoder out
Absolute
• SSI
• EnDat 2.1 & 2.2
• Absolute A
• Tamagawa Absolute A
• Panasonic Absolute A Format
• BiSS (B&C)
Other
• Digital Halls
I/O DIGITAl
• 12 High-speed inputs
• 2 Motor over-temp inputs
• 8 Opto-isolated inputs
• 5 Opto-isolated outputs
• 2 Opto-isolated motor brake outputs
I/O ANAlOG
• 2 Reference inputs, 14-bit
SAFe toRqUe oFF (Sto)
• SIl 3, Category 3, Pl d
DiMenSionS: in [MM]
• 9.24 x 5.42 x 3.59 [234.7 x 137.6 x 91.1]
DeSCRiPtion

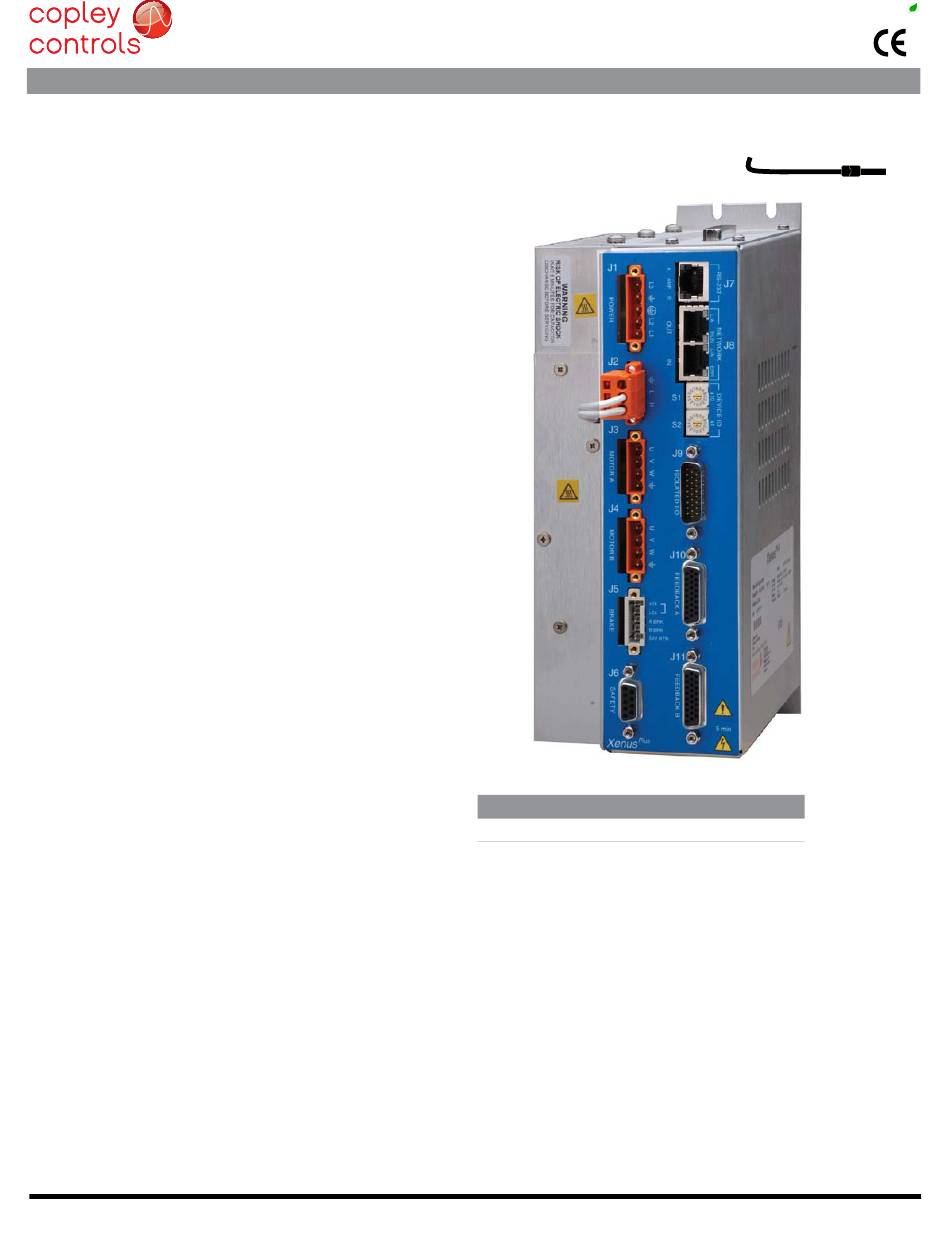

the XM2 Xenus Plus 2-Axis MACRO is a high-performance, AC powered drive for torque and velocity control
of brushless and brush motors via MACRo (Motion And Control Ring optical). MACRo is a high bandwidth,
nonproprietary fiber optic or wired field bus protocol for machine control networks. Connections to a MACRO ring
are via SC-type fiber optic connectors. MACRO address selection is via two rotary switches for Master and Node
addresses.
the XM2 Xenus Plus 2-Axis MACRO set new levels of performance, connectivity, and flexibility via the MACRO
interface. A wide range of absolute interfaces are built-in including enDat, SSi, BiSS, and Absolute A.
High resolution A/D converters ensure optimal current loop performance. Both isolated and high-speed non-isolated
i/o are provided. For safety critical applications, redundant power stage enable inputs (Sto) can be employed.
in addition to the MACRo interface, torque and velocity control is also supported via an analog input with a
±10 Vdc range.
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
16-01419
PLUS
MACRO
2-Axis
Model
XM2-230-20
Rev A
XM2
Rev 01
MACRO
Motion And Control Ring
T h e L I g h t L I n k I n M o t I o n . . .
Vac
Ic
Ip
100~240
10
20
RoHS
O
ptical
Page 1 of 34
