Xenus Plus User Guide

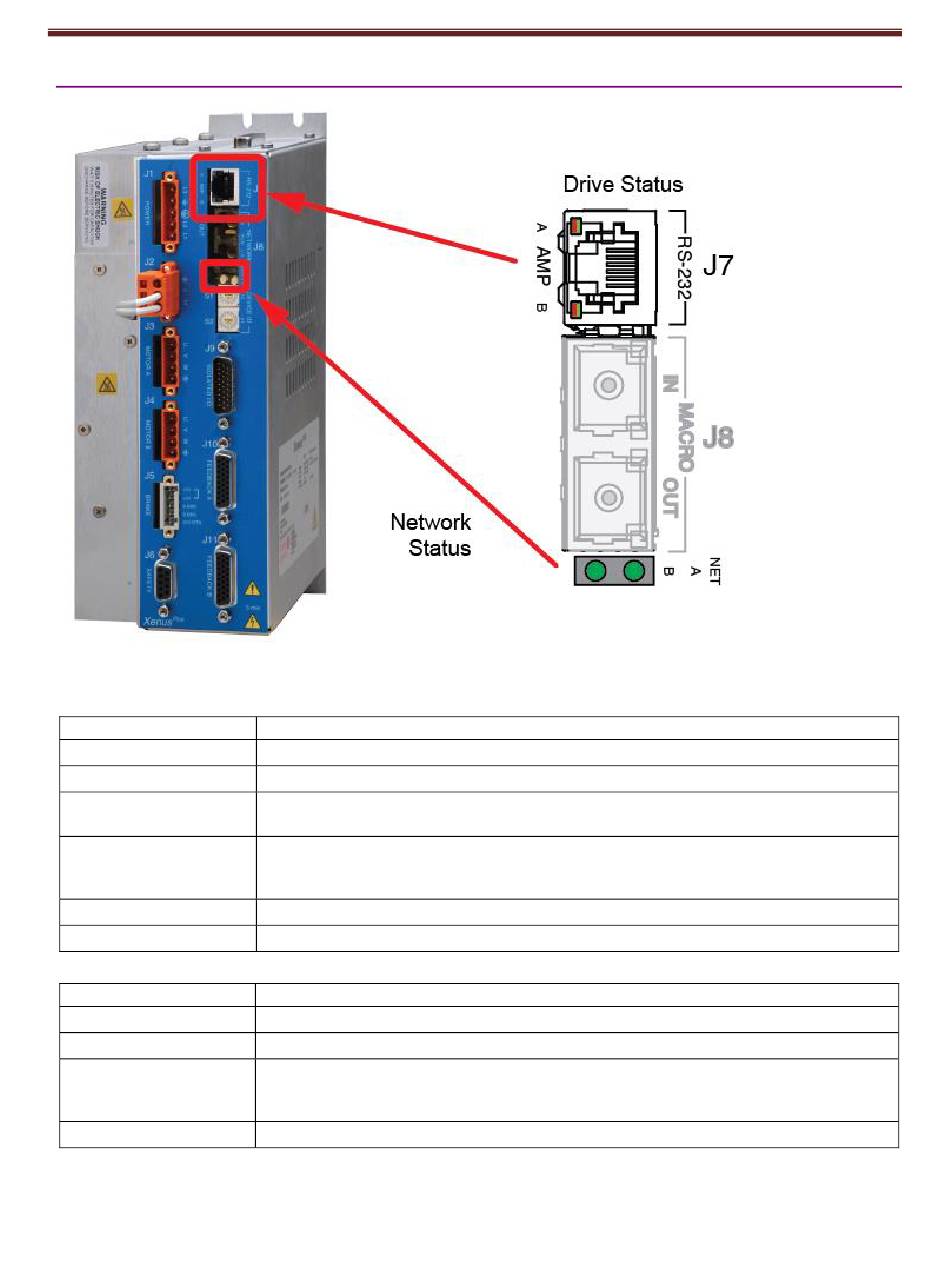

2.5.6: XM2 J7: Drive and MACRO Network Status Indicators
XM2 J7 Axis A/B: Drive Status (AMP) Indicators
XM2 indicator color/blink codes are described below.
Color/Blink Code
Green/Solid
Green/Slow Blinking
Green/Fast Blinking
Green flash twice
followed by a pause
Red/Solid
Red/Blinking
XM2 J8 Axis A/B NET Indicator: MACRO Network (NET) Status
NET
Off
Blinking green
Green
Steady red
Copley Controls
Meaning
Drive OK and enabled. Will run in response to reference inputs or MACRO commands.
Drive OK but NOT-enabled. Will run when enabled.
Positive or Negative limit switch active. Drive will only move in direction not inhibited by
limit switch.
STO is active, One or both STO inputs are de-energized. The drive is hardware &
software enabled but the PWM outputs cannot produce current in the motor when
STO is active.
Transient fault condition. Drive will resume operation when fault is removed.
Latching fault. Operation will not resume until fault is cleared or drive is Reset.
Description
MACRO network has not been detected.
MACRO network detected and has disabled drive.
MACRO network detected and is trying to enable drive. This condition can occur while
the AMP LED shows any of its valid color combinations. This LED must be green
for the AMP LED to become green.
MACRO network errors have been detected.
