Xenus Plus User Guide

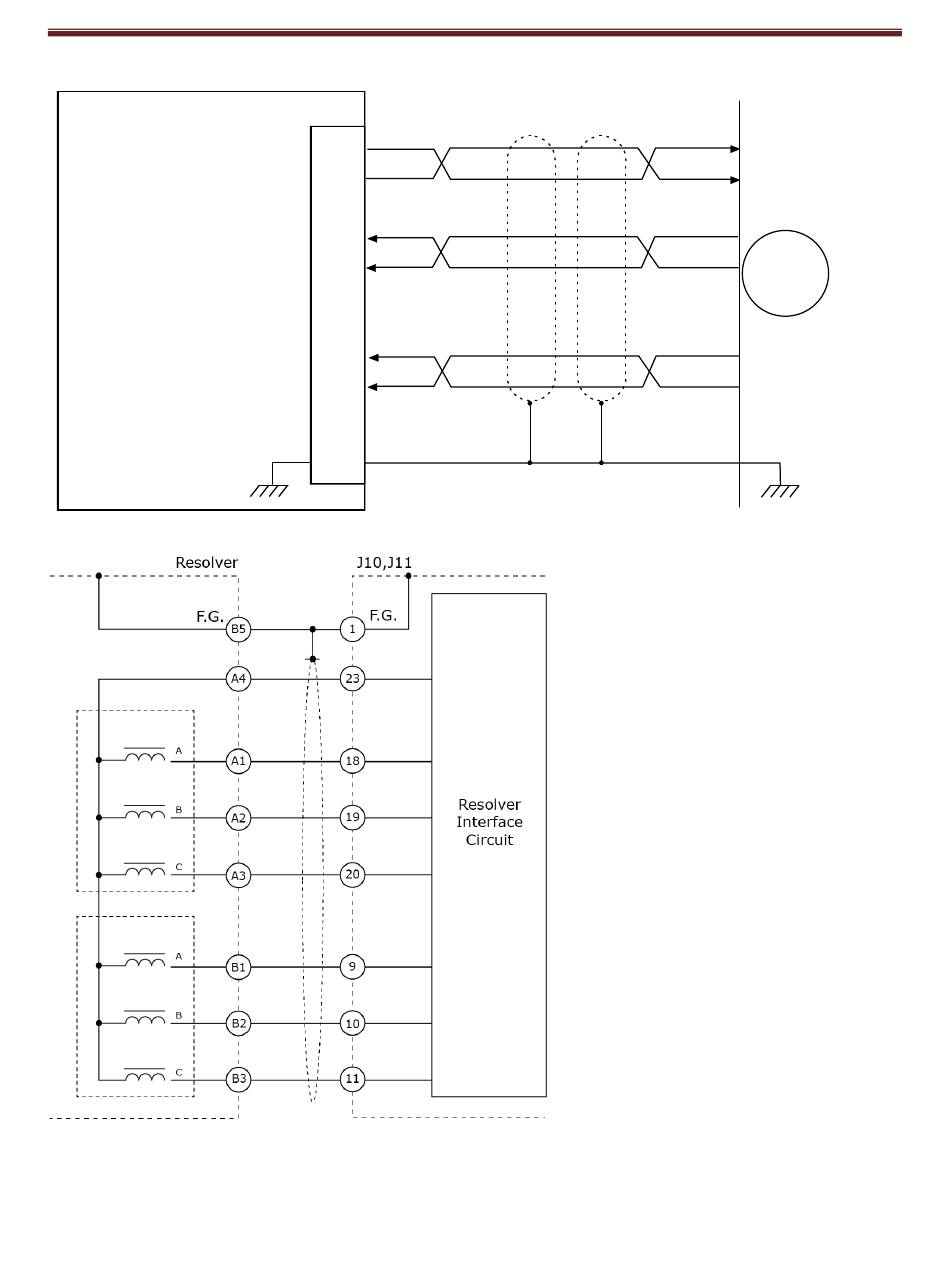

Resolver Wiring Diagram

Drive

Resolver Wiring Diagram, 800-1819/800-1887

Copley Controls

J10

REF(+)

J10-23

REF(-)

J10-22

SIN (+)

J10-19

SIN (-)

J10-18

COS (+)

J10-21

COS (-)

J10-20

Frame Gnd

J10-1

16-01344 Rev 06

R1

R2

Resolver

S3

S1

S2

S4

Case Ground

132
