Xenus Plus User Guide

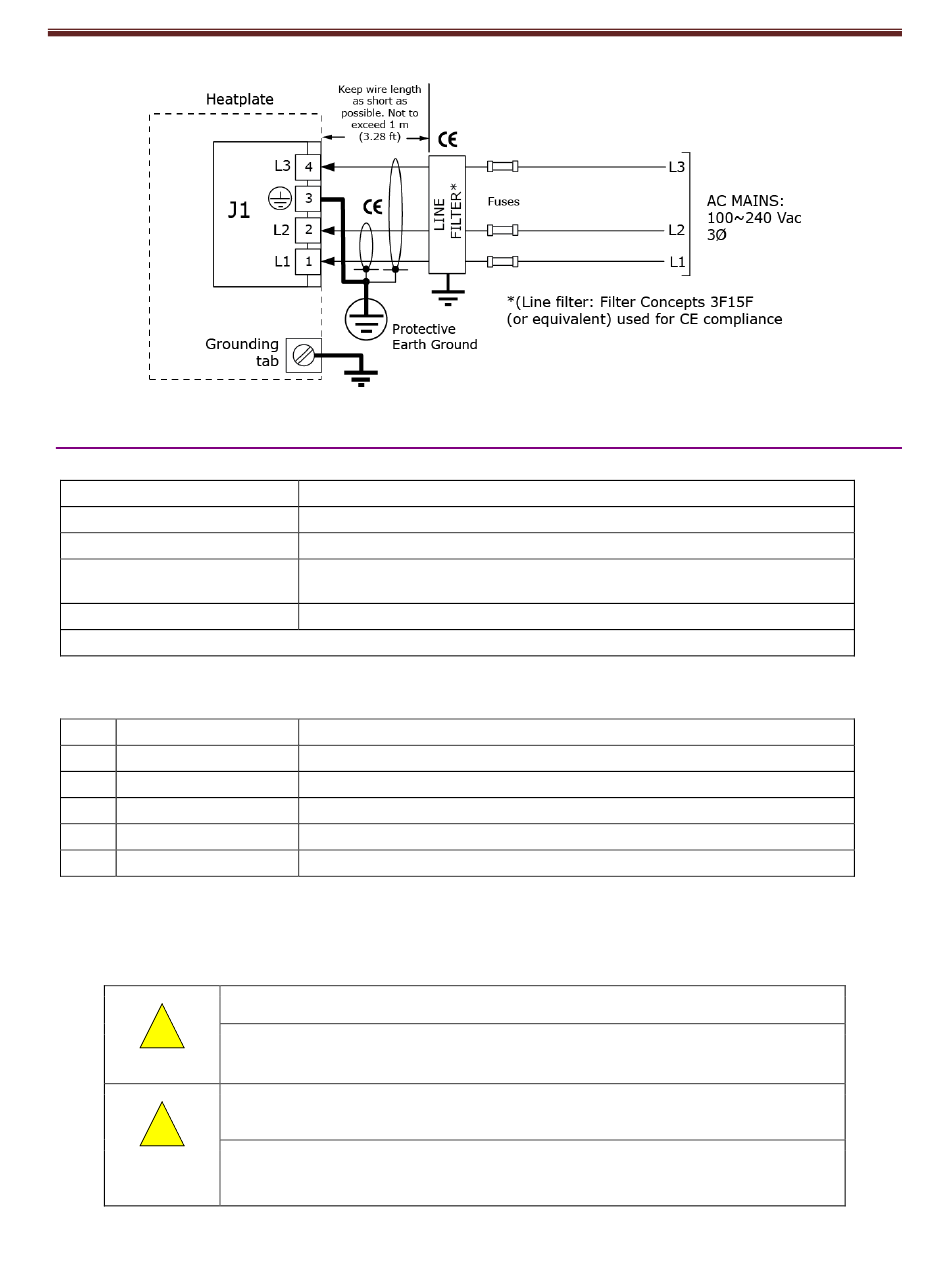

AC Mains Wiring Diagram (Three-Phase) XEL/XPL/XML
4.2.2: XE2/XP2/XM2/800-1818/800-1819/800-1887
Mating Connector
Description
Manufacturer PN
Wire size
Recommended Wire
Wire Insertion/Extraction Tool
Connector and tool are included in Connector Kits XE2-CK, XP2-CK and XM2-CK.
Pin Description
Pin Signal
1 L1
2 L2
3 PE ground
4 Frame ground
5 L3
AC Mains Fuse Recommendation (All Xenus Plus models)
Recommended fuse type: Class CC, 600 Vac rated, Ferraz-Shawmut ATDR, Littelfuse CCMR,
Bussman LP-CC, or equivalent.
!
WARNING
!
WARNING
Copley Controls
Euro-style 5.08 mm pluggable female terminal block.
Wago: 231-305/107-000
22 - 12 AWG
12 AWG, 600 V
Shielded cable required for CE compliance
Wago: 231-131 or 231-291
Function
AC power input (hot or L1)
AC power input (neutral or L2)
Chassis safety ground
Frame ground
AC power input (L3)
EMI Line Filter is necessary to meet EMC requirements
Use of an EMI Line Filter with Xenus Plus Dual Axis drives is mandatory for meeting
EMC requirements
A surge protection device (SPD) or an isolation transformer is required to
establish an over-voltage category II environment
The AC mains supplying the drive must be limited to over-voltages of Category II. The
relevant standards assume AC mains with over-voltages per OVC III. An SPD or an
isolation transformer is required to limit over-voltages to OVC II levels.
16-01344 Rev 06
