Xenus Plus User Guide

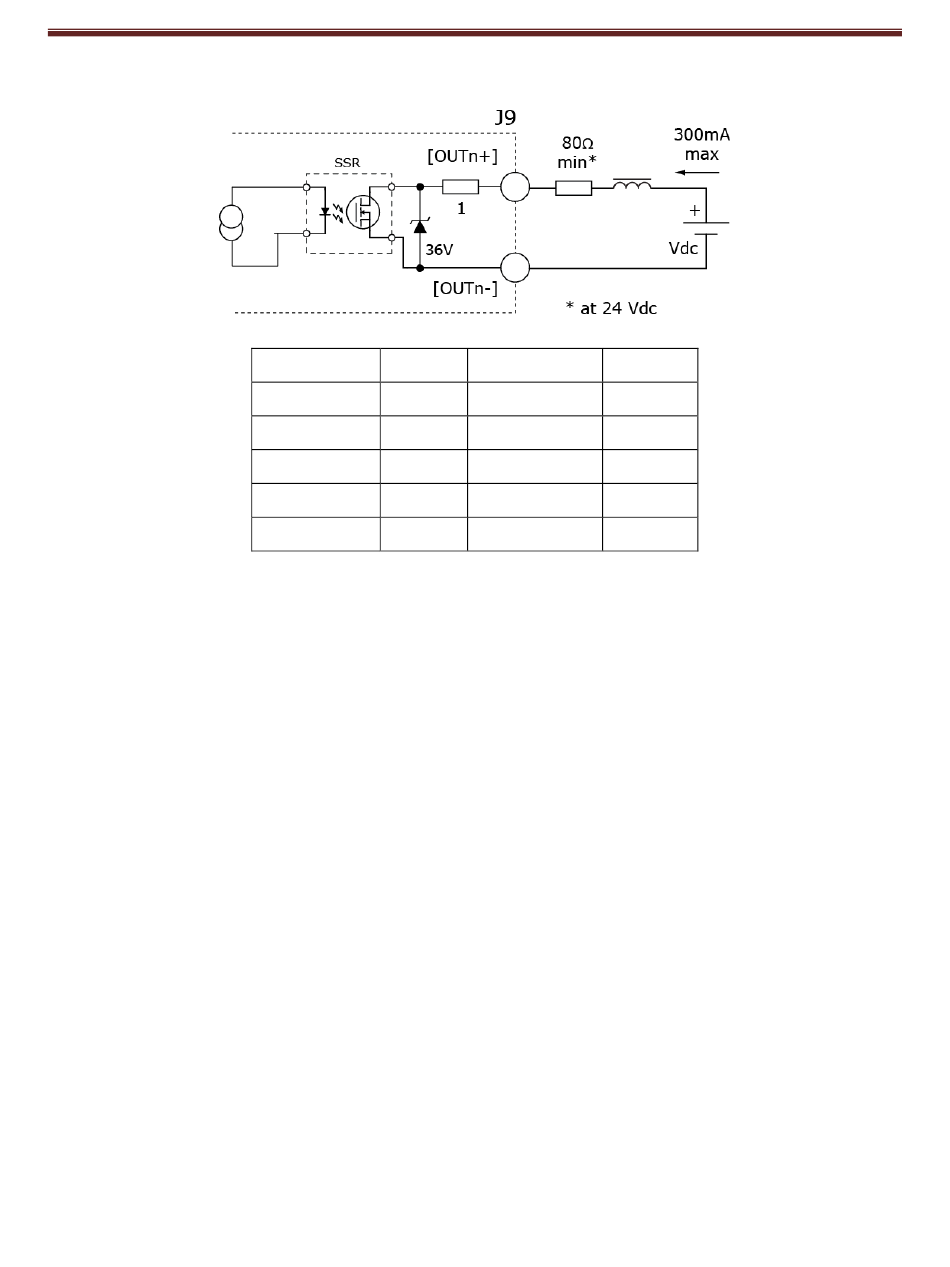

Optically Isolated Programmable Outputs Wiring Diagram,
XE2/XP2/XM2/800-1818/800-1819/800-1887
J9 Wiring
Note: Model 800-1819/800-1887 does not have OUT4 and OUT5.
Copley Controls
Signal
Pins
[OUT1+]
19
[OUT2+]
20
[OUT3+]
21
[OUT4+]
22
[OUT5+]
23
Signal
Pins
[OUT1-]
10
[OUT2-]
11
[OUT3-]
12
[OUT4-]
13
[OUT5-]
14
16-01344 Rev 06
125
