Xenus Plus User Guide

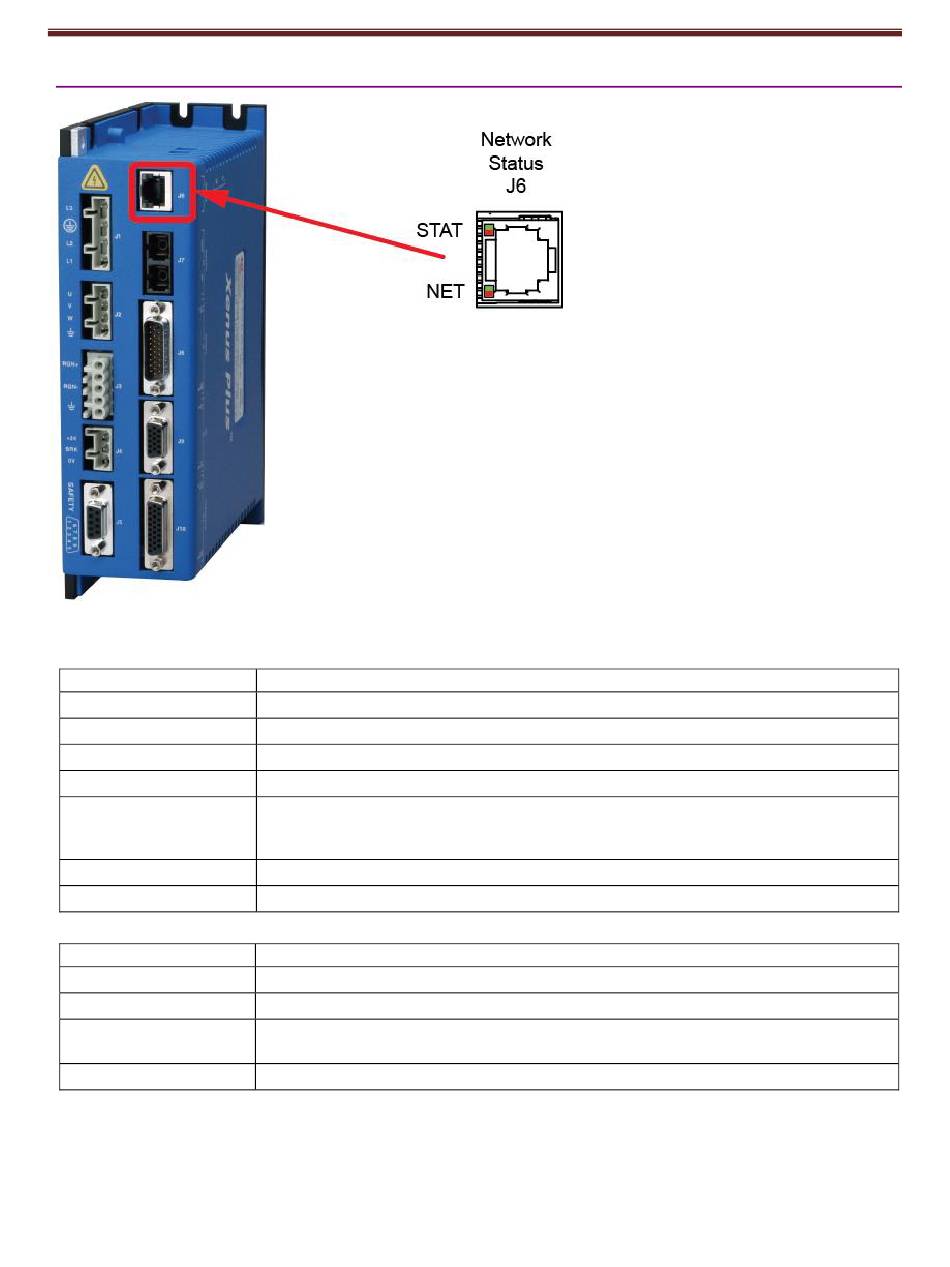

2.5.5: XML J6: Drive and MACRO Network Status Indicators
XML J6 STAT Indicator: Drive Status
Indicator color/blink codes are described below.
Color/Blink Code
Not illuminated
Steady green
Slow-blinking green
Fast-blinking green
Green flash twice
followed by a pause
Steady red
Blinking red
XML J6 NET Indicator: MACRO Network Status
NET
Off
Blinking green
Green
Steady red
Copley Controls
Meaning
No +24 Vdc power to drive.
Drive is enabled and operational.
Drive is disabled. No faults or warnings are active.
A limit switch is active. The drive is enabled.
MTO is active, One or both MTO inputs are de-energized. The drive is hardware &
software enabled but the PWM outputs cannot produce current in the motor when
MTO is active.
A non-latched fault has occurred.
A latched fault has occurred.
Description
MACRO network has not been detected.
MACRO network detected and has disabled drive.
MACRO network detected and is trying to enable drive. This condition can occur
while the AMP LED shows any of its valid color combinations.
MACRO network errors have been detected.
