Copley Controls Xenus Plus Series User Manual page 129

Xenus Plus User Guide
Pin Signal
19 Resolver Inc B
20 Resolver Inc C
21 N/C
22 N/C
23 Resolver Ref(+)
24 N/C
25 Signal ground
26 Signal ground

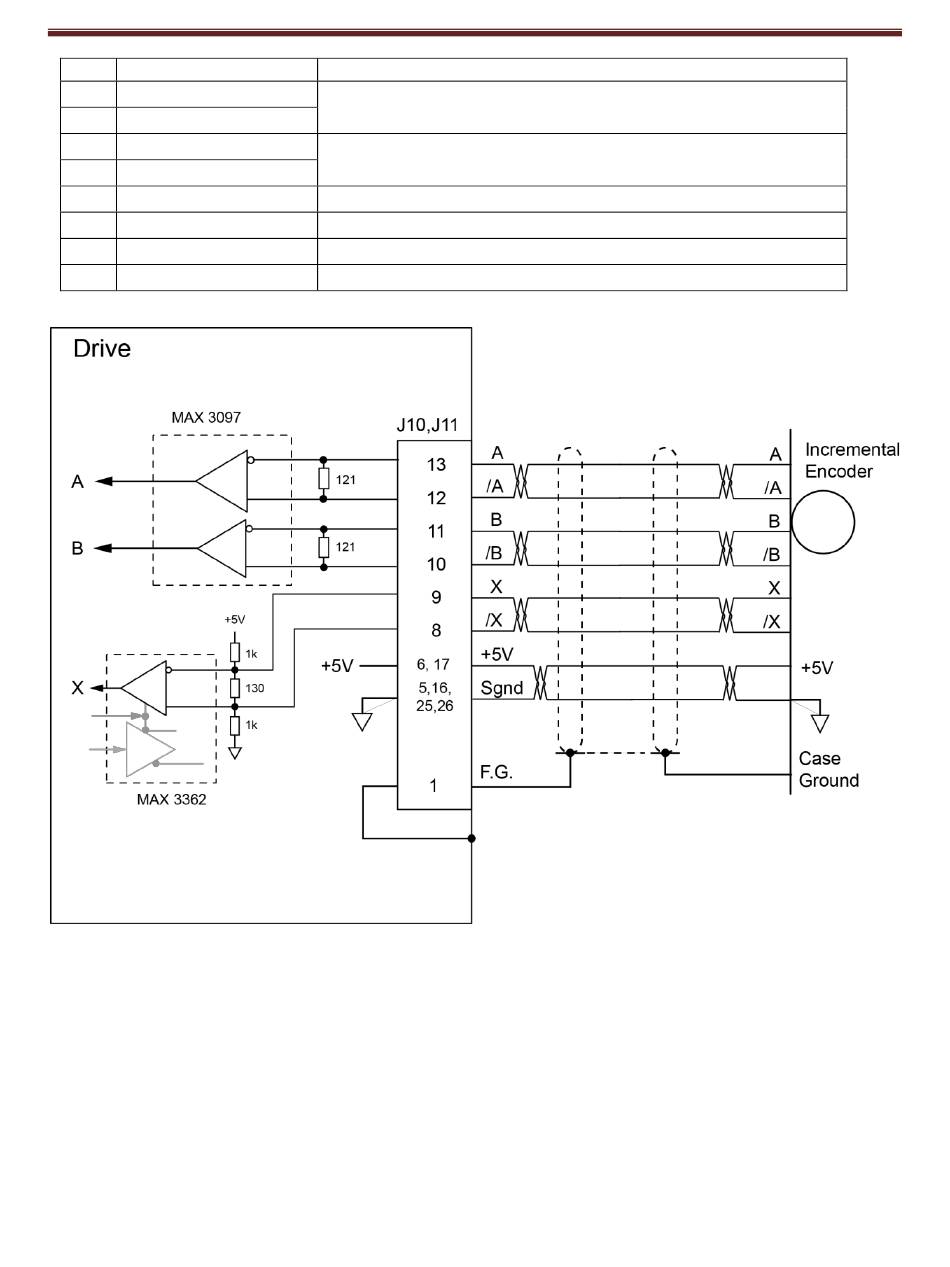

Quad A/B Incremental Encoder Wiring Diagram
In XEL/XPL/XML there are two encoder +5V outputs at 400 mA each, and in the XE2/XP2/XM2/800-1818/800-
1819/800-1887 there are 4 encoder +5V outputs at 500 mA each.
Copley Controls
Function
No connection
Resolver Ref inputs.
No connection
Signal and +5 Vdc ground.
Signal and +5 Vdc ground.
